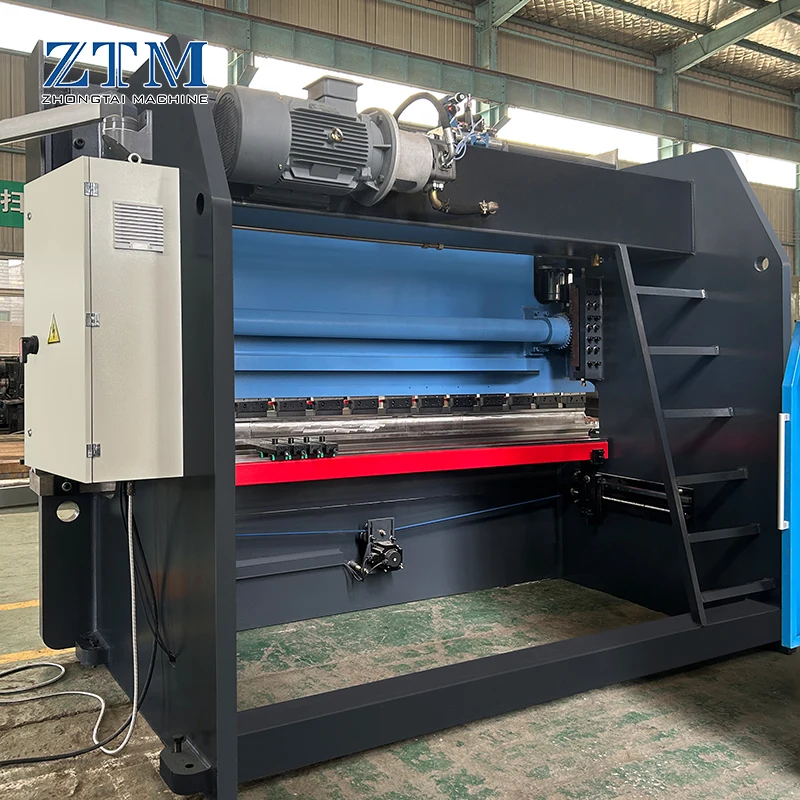

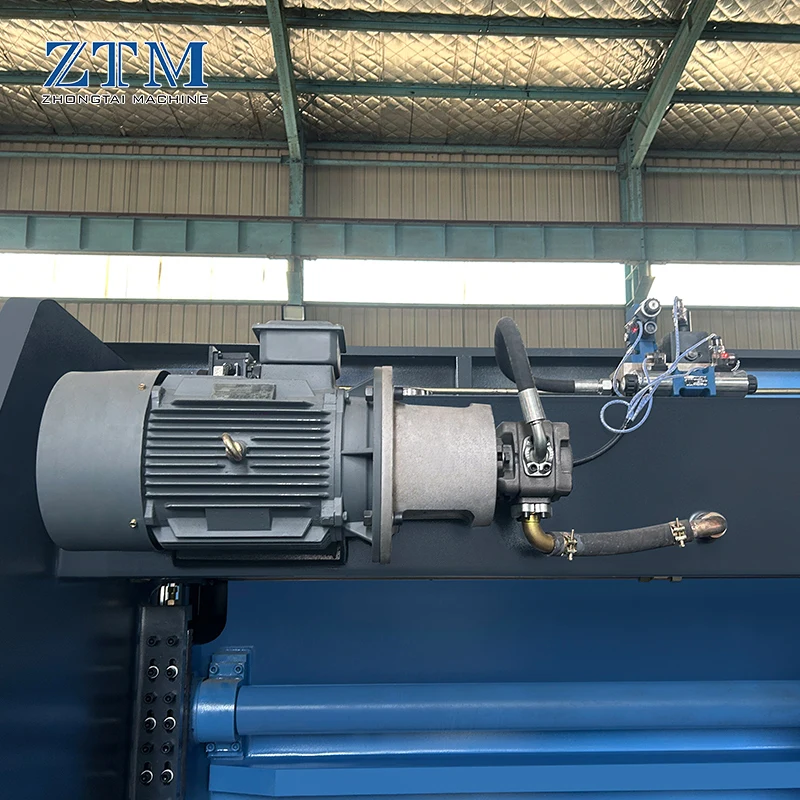

Uses three phase asynchronous motor andlarge flow pump as hydraulic active powersource. High efficiency, reliability, energysaving, low noise, low vibration, etc.

Using servo motor as the main power source of hydraulic pump can save about 40% energy. The overall efficiency of the slider increases by about 7-20%. 0il temperature can be reduced by about 10-20°C.

High energy efficiency easy to maintain and modify. Compact and versatile for a wide range of applications. Highly reliable,efficient and environmentally friendly.

Small size, easy to operate. Long service life, low noise. Easy to dissipate heat.

Precise measurement of deflection and feedback compensation. Ensure bending accuracy. Effectively prevents collision of non-standard parts.

By CNC control system, precise compensation is obtained to ensure high quality bending accuracy.

It has detectionarea,if an opaque object interrupts the beam, the control system stops the device. Fully protects thepersonal safety of the operator.

Sensitive response and long service life Customised filters protect against sunlight interference. Dust and oil resistant, rugged construction.

Can be swapped at any time, easy for customers to replace according to the wear condition.Precise size control by adjusting the position of the stop finger.

Fast response for fast and accurate dynamic control. For fast and precise position, speed,torque and trajectory control.

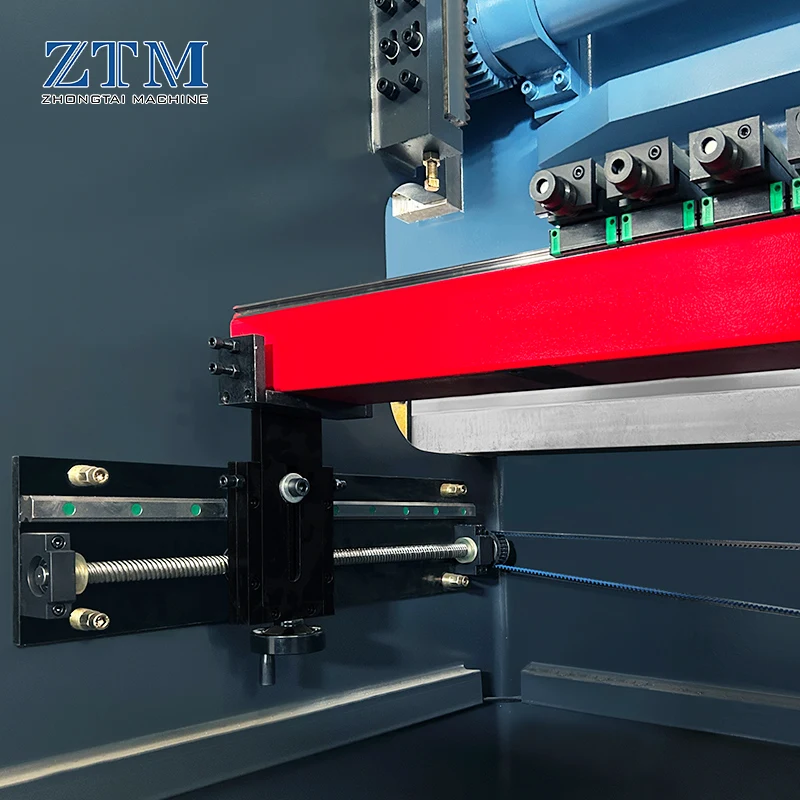

Hiwin high precision ball screw and linear guide. Smooth transmission and high adjustment precision.

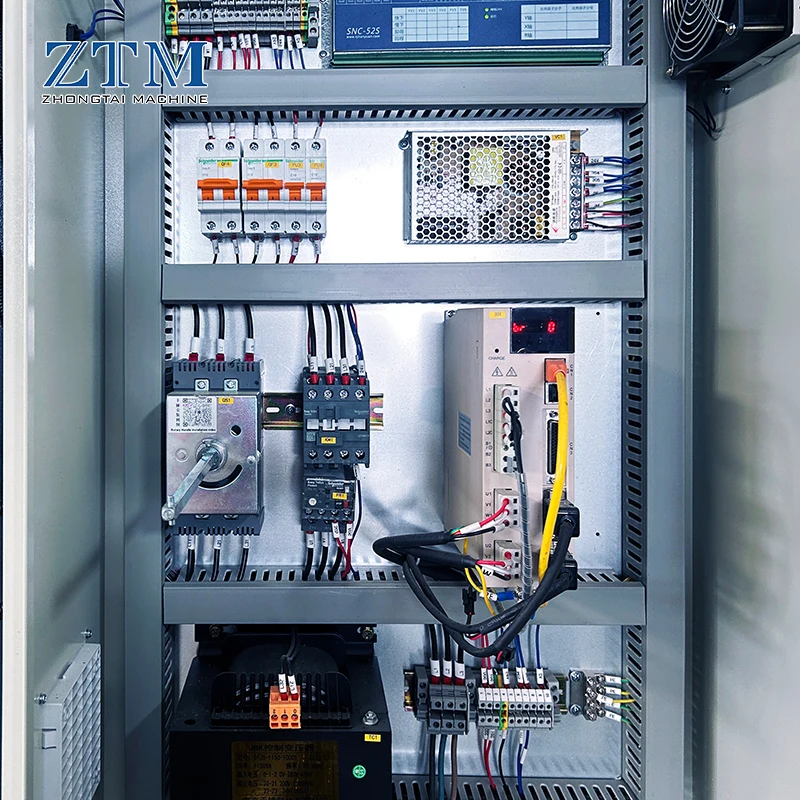

Overload protection, short circuit protection,leakage protection. Sensitive performance,more stable and safe. Energy saving, strong impact resistance.

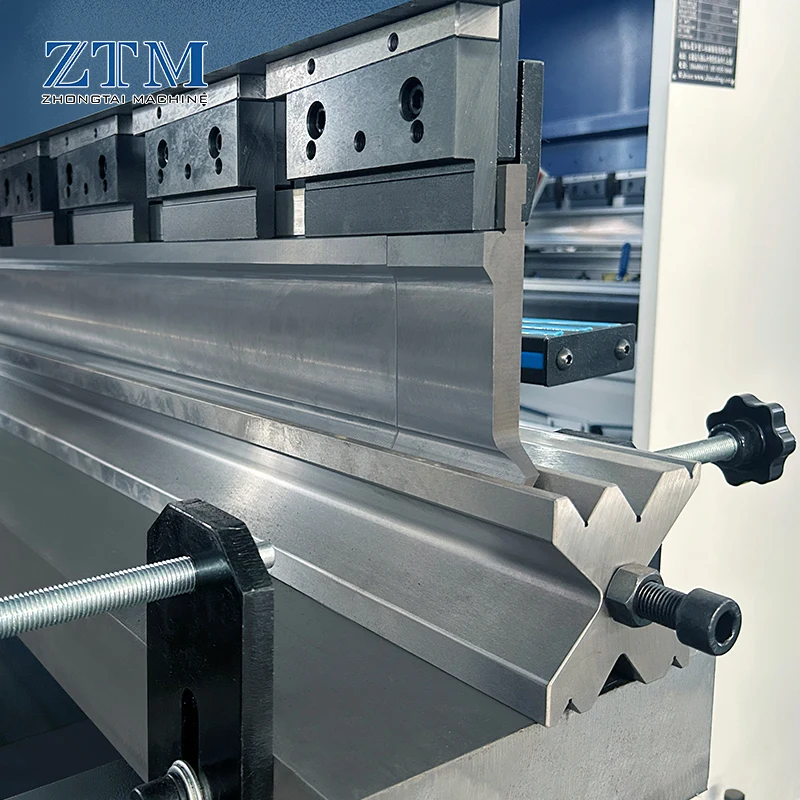

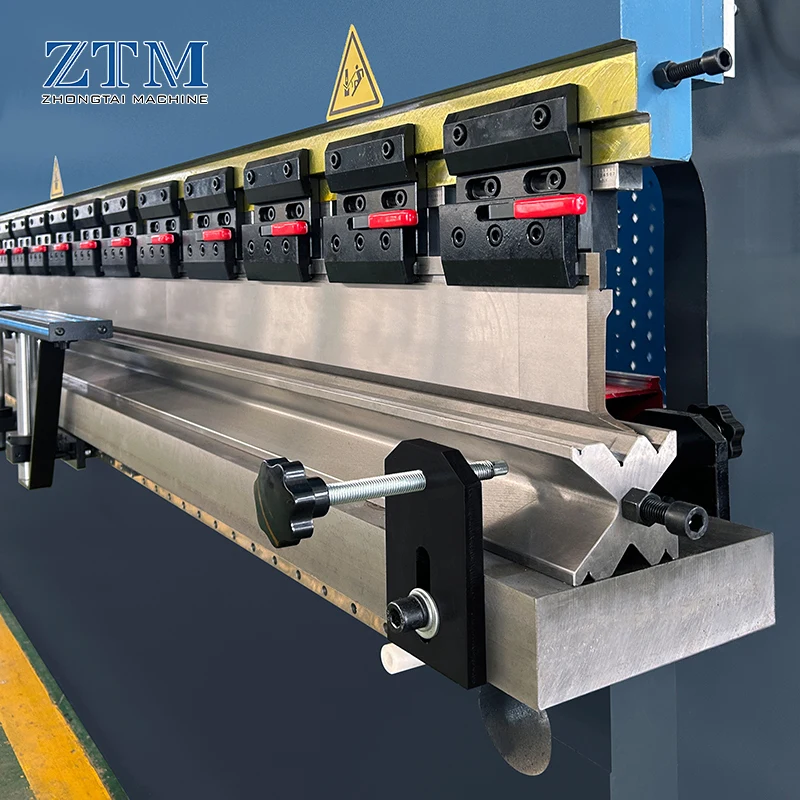

3-step fast tooling clamp,the quickclampingfeature allows for individual operationwhendealing with longer punches that require theuse of multiple clamps. Suitable for production environments that require frequent replacement of workpieces.

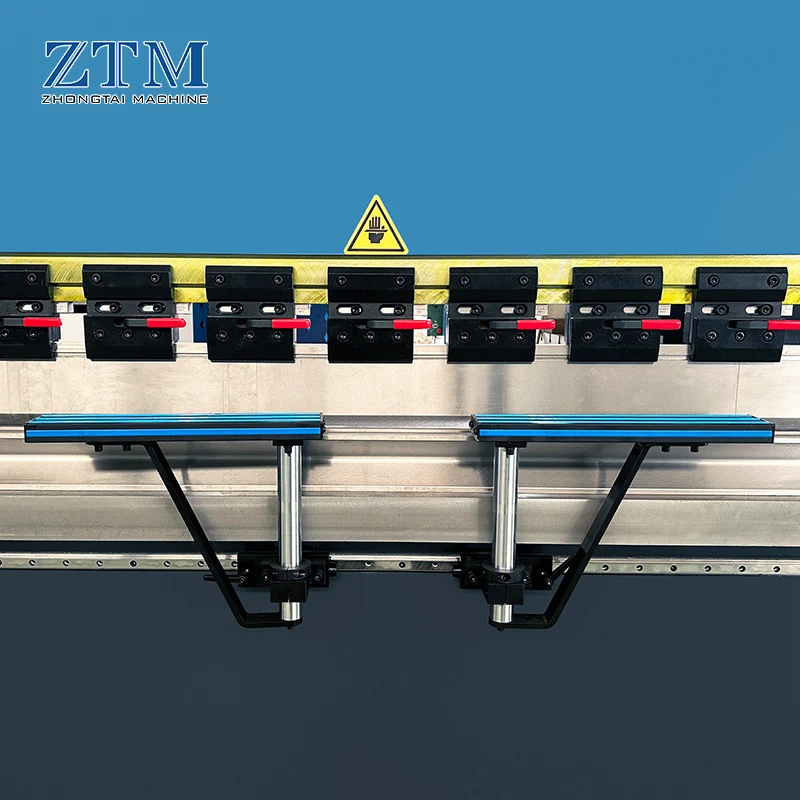

Suitable for workpieces of different shapes,sizes, and processing requirements, helping to locate and support workpieces. Reducing errors or damage caused by workpiece deformation or movement.

1. 10.1″ high resolution colour TFT
2. “Hot-key” touch navigation.

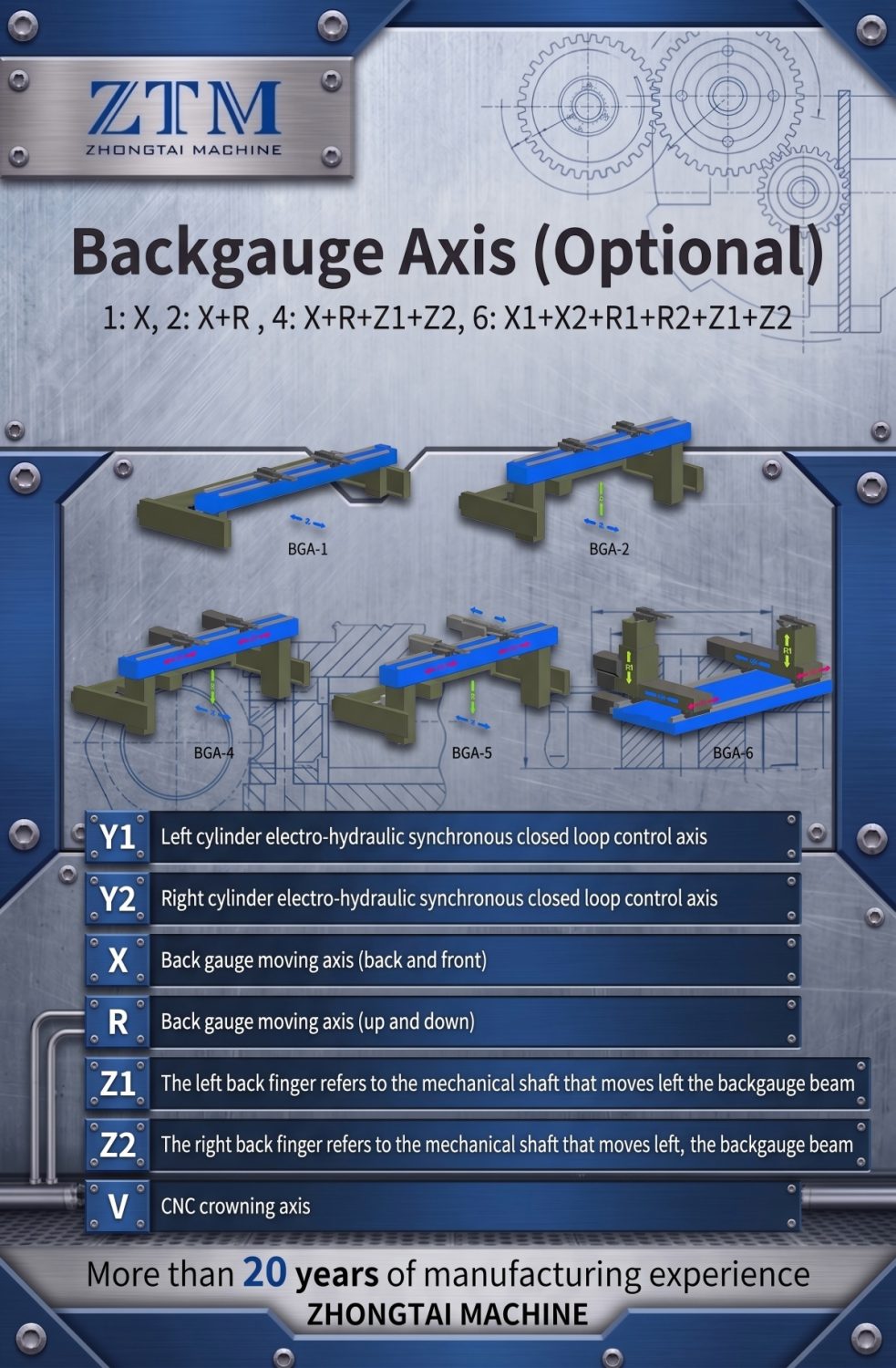

3. Up to 4 axes (Y1,Y2 + 2 aux. axes)
4. Advanced Y-axis control algorithms for closed-loop as well as open-loop valves

1. 15″ high resolution colour TFT
2. 2D graphical touch screen programming.
3. Up to 4 axes (Y1,Y2 + 2 aux. axes).
4. Advanced Y-axis control algorithms for closed-loop as well as open-loop valves

1. 17″ high resolution colour TFT
2. 2D graphical touch screen programming.
3. 3D visualisation in simulation and production.
4. Delem Modusys compatibility (module scalability and adaptivity)

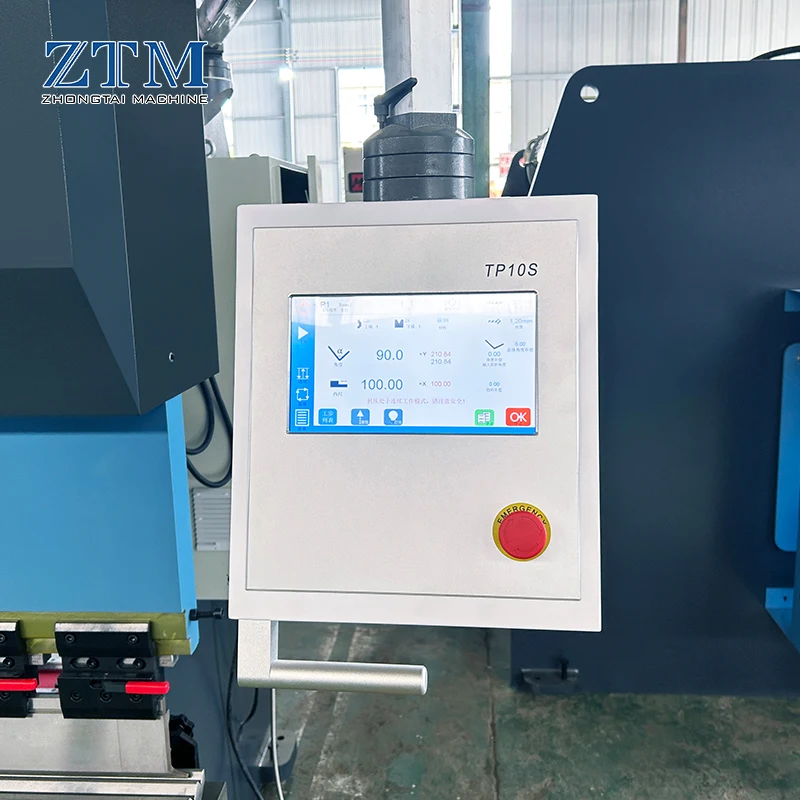

1. 8″ color LCD display, touch screen
2. One-pass bending process
3. Efficient bending programming.
4. Automatically calculate bending angle, main pressure and deflection compensation

1. 12″ color graphic with fully touch screen
2. Touch 2D graphic part creation with manual sequencing
3. Up to 4 axes (Yl, Y2, X, R-axes)
4. Bend allowance calculation
5. Pressure-crowning calculation

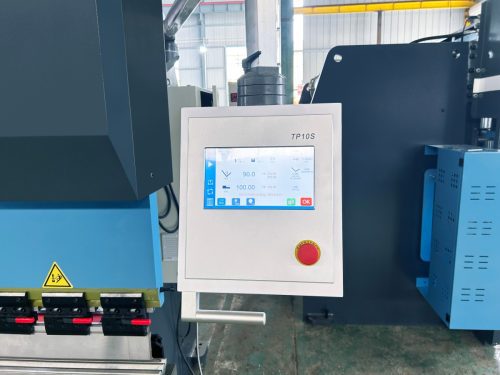

1. 10 inch LCD touch screen (Resistive)
2. Touch 2D graphic part creation
3. Stander to 4 axis (Y1Y2, X, R)
4. Automatic bending force, crowning calculation.
5. Modulable tools for each part or bend

1. 15 inch LCD touch screen (Resistive)
2. Touch 2D graphic part creation
3. Stander to 4 axis, can up to 6 axis max
4. Automatic bending force, crowning calculation.
5. Tandem machine management

1. Manual positioning
2. Support for product calibration
3. Support for data backup and recovery
4. Free bending, press bottom bending, arc bending
5. Programs can be run in automatic mode
