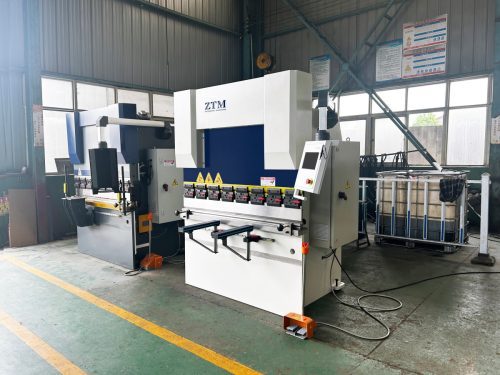

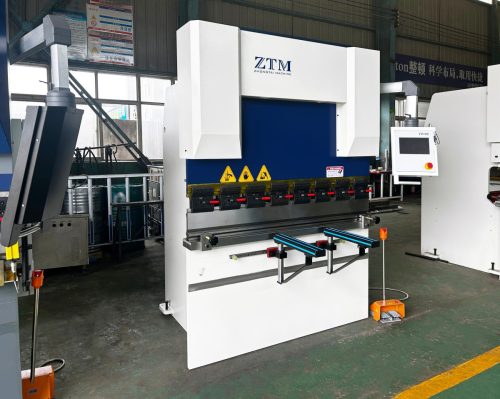

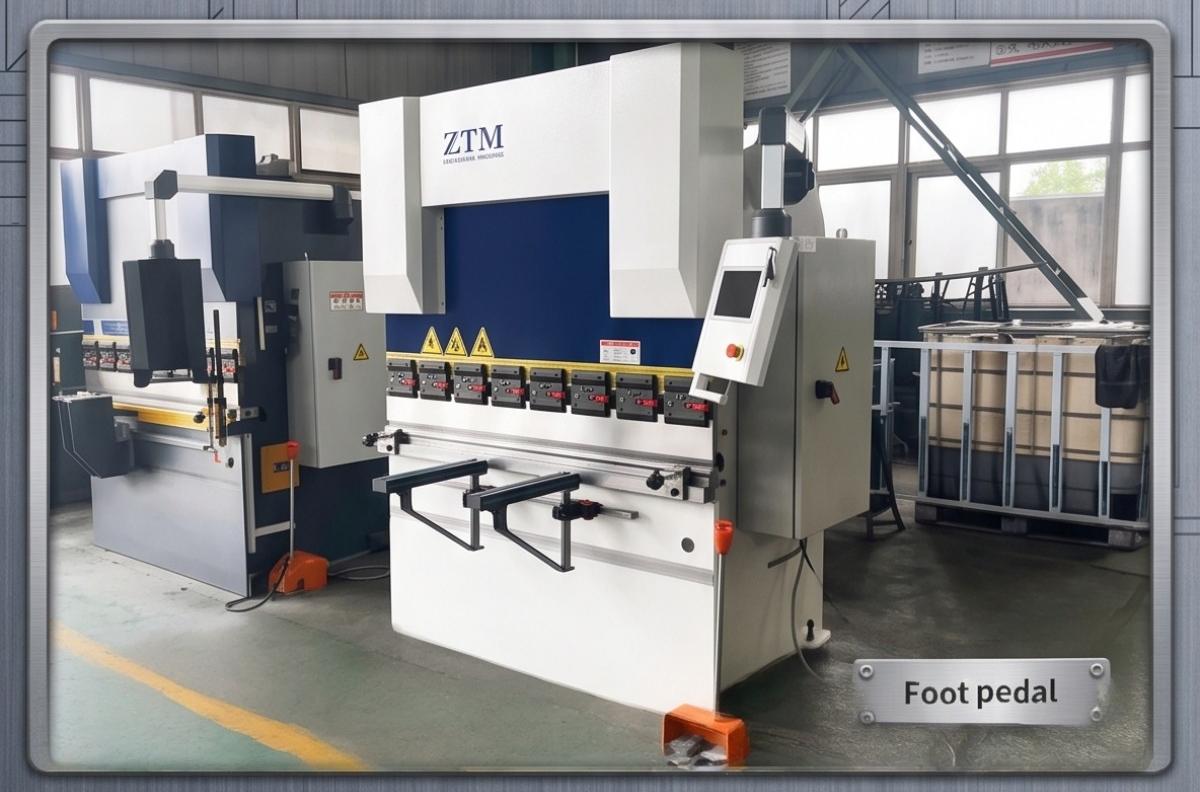

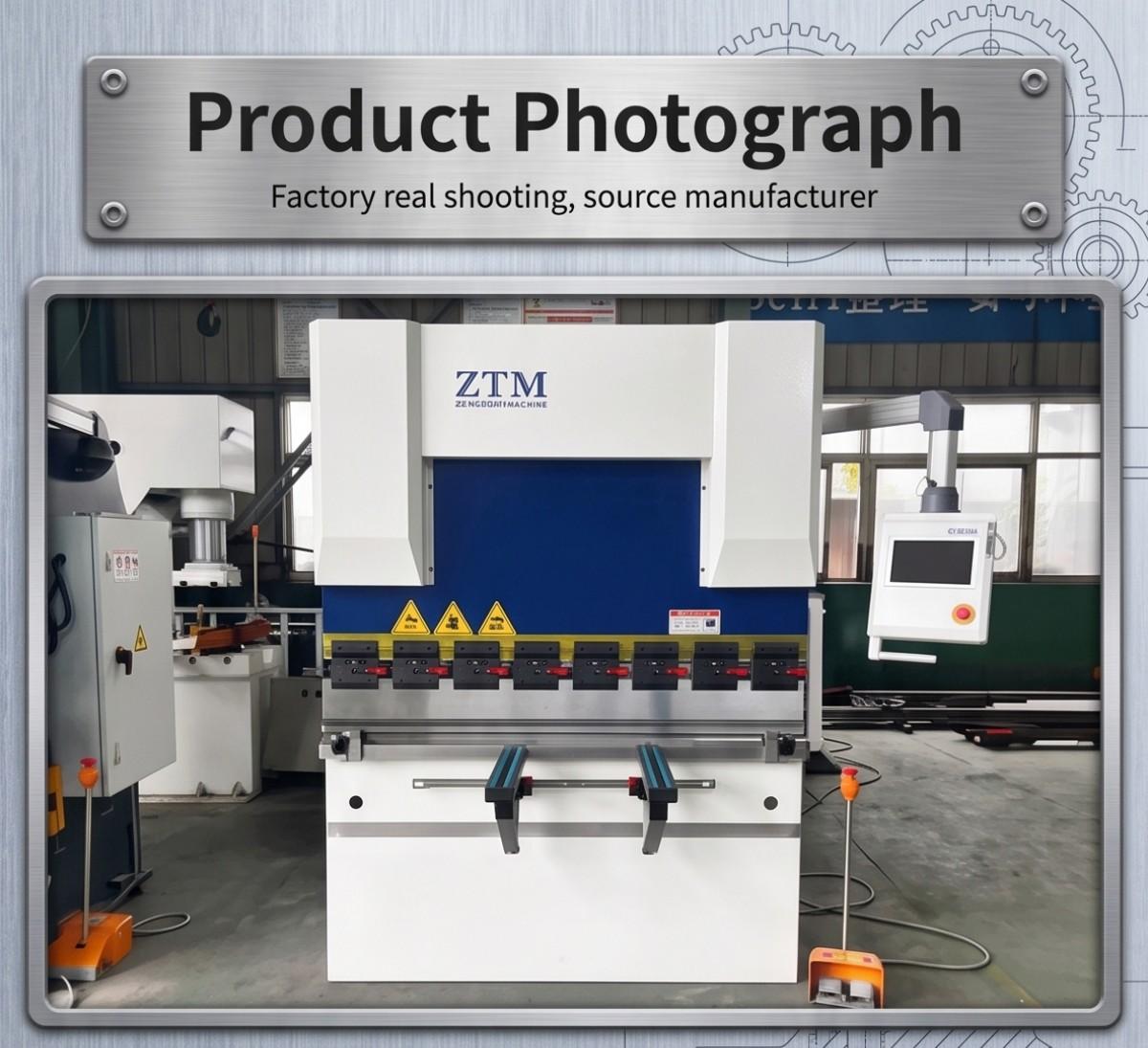

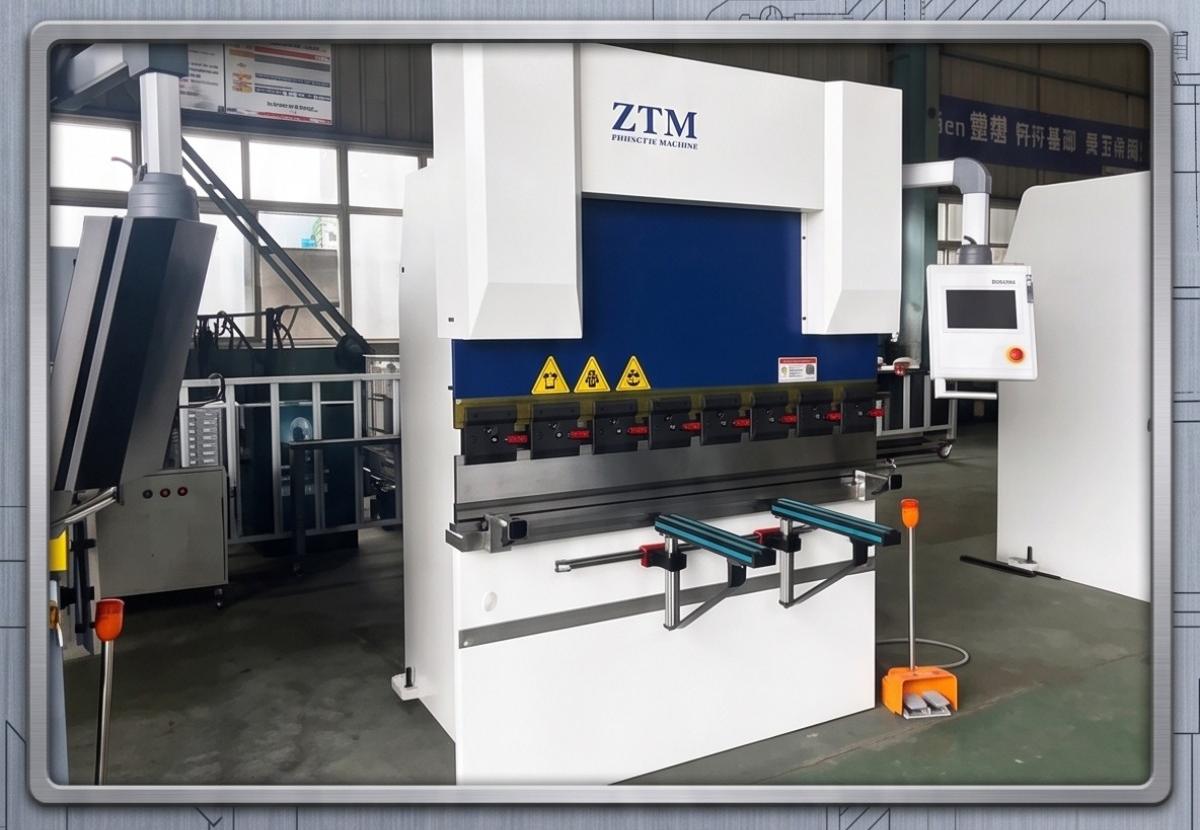

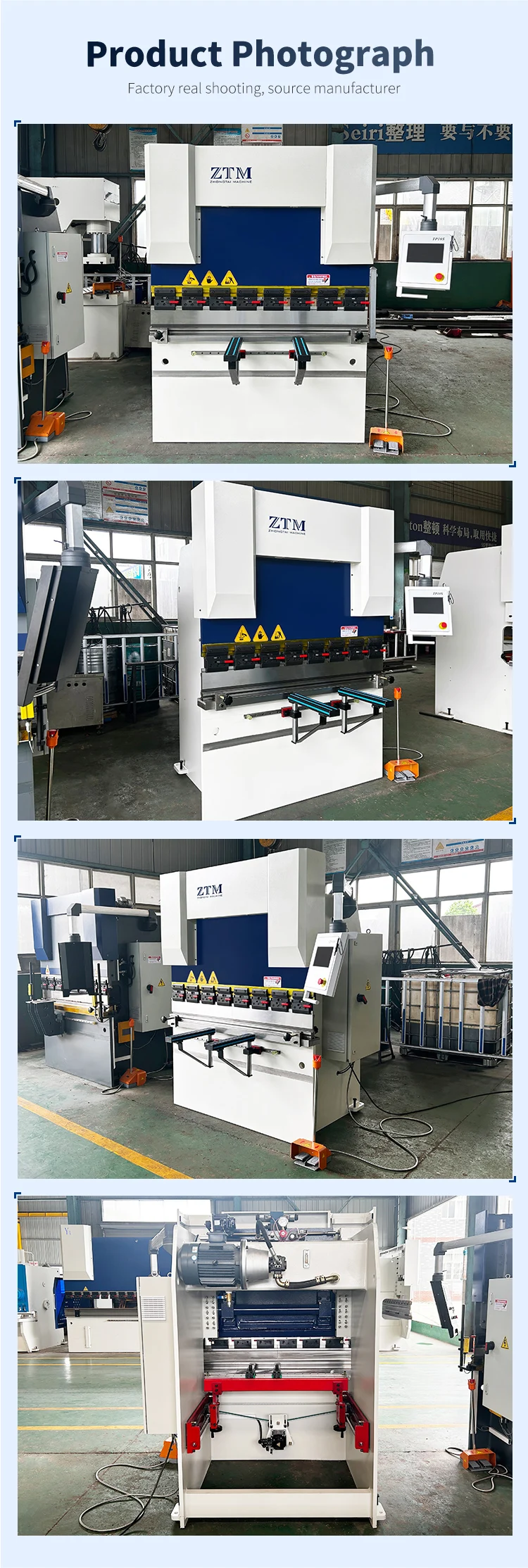

ZTM 40T/1600mm NC Press Brake Machine
- High-Precision Bending: Delivered with a 40-Ton capacity and 1600mm bending length, engineered for stable, consistent, and accurate sheet metal processing.

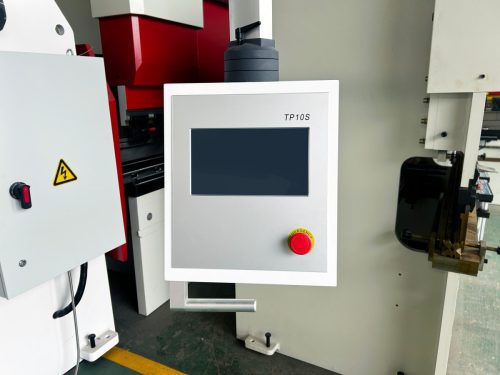

- TP10S Intelligent NC Control: Features a user-friendly touch interface for rapid program setup, automatic angle calculation, and multi-step positioning.
- Compact & Efficient Footprint: Space-saving structural design ideal for small-to-medium workpieces, maximizing workshop productivity while reducing energy consumption.
- Durable Hydraulic System: Built with high-rigidity frames and premium hydraulic components to ensure long service life and high operational safety.
- Cost-Effective Operation: Combines low maintenance requirements with high efficiency, delivering maximum return on investment for precision metal fabrication.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Important Parameters
Type | Nominal Force (KN) | Worktable Length (mm) | Peles Distance(mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open(mm) | Power(kw) | Weight(kg) | Dimensions LxWxH(mm) |
40T/1600 | 400 | 1600 | 1200 | 200 | 100 | 320 | 5.5 | 2500 | 1800x1200x1800 |
40T/2000 | 400 | 2000 | 1600 | 200 | 100 | 320 | 5.5 | 3000 | 2300x1280x2100 |
50T/2500 | 500 | 2500 | 1900 | 200 | 100 | 320 | 5.5 | 3400 | 2850x1800x2200 |
63T/2500 | 630 | 2500 | 1900 | 250 | 120 | 345 | 5.5 | 3800 | 2850x1800x2300 |
63T/3200 | 630 | 3200 | 2600 | 250 | 120 | 345 | 5.5 | 4300 | 3500x1800x2300 |
80T/2500 | 800 | 2500 | 1900 | 250 | 120 | 350 | 5.5 | 4800 | 2900x1800x2350 |
80T/3200 | 800 | 3200 | 2600 | 250 | 120 | 350 | 5.5 | 5400 | 3700x1800x2400 |
80T/4000 | 800 | 4000 | 3100 | 250 | 120 | 350 | 5.5 | 6500 | 4300x1800x2400 |
100T/2500 | 1000 | 2500 | 1900 | 320 | 150 | 380 | 7.5 | 5600 | 2900x1800x2450 |
100T/3200 | 1000 | 3200 | 2600 | 320 | 150 | 380 | 7.5 | 6600 | 3800x1800x2500 |
100T/4000 | 1000 | 4000 | 3100 | 320 | 150 | 380 | 7.5 | 7800 | 4400x1800x2500 |
125T/2500 | 1250 | 2500 | 1900 | 320 | 150 | 380 | 7.5 | 6200 | 3000x1800x2500 |
125T/3200 | 1250 | 3200 | 2600 | 320 | 150 | 380 | 7.5 | 6800 | 3800x1850x2500 |
125T/4000 | 1250 | 4000 | 3100 | 320 | 150 | 380 | 7.5 | 7500 | 4400x1850x2500 |
160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 450 | 11 | 9500 | 3900x1900x2650 |
160T/4000 | 1600 | 4000 | 3100 | 320 | 200 | 450 | 11 | 11000 | 4500x1900x2650 |
160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 450 | 11 | 13000 | 5500x2000x2700 |
160T/6000 | 1600 | 6000 | 4800 | 320 | 200 | 450 | 11 | 16000 | 6500x2000x3100 |
200T/3200 | 2000 | 3200 | 2600 | 350 | 250 | 500 | 15 | 10000 | 3900x2000x2650 |
200T/4000 | 2000 | 4000 | 3100 | 350 | 250 | 500 | 15 | 15000 | 4500x2000x2700 |
200T/5000 | 2000 | 5000 | 4000 | 350 | 250 | 500 | 15 | 17000 | 5500x2000x2700 |
200T/6000 | 2000 | 6000 | 4800 | 350 | 250 | 500 | 15 | 19000 | 6500x2000x2800 |
250T/3200 | 2500 | 3200 | 2600 | 350 | 250 | 520 | 8.5 | 13000 | 3900x2050x2850 |
250T/4000 | 2500 | 4000 | 3100 | 350 | 250 | 520 | 18.5 | 16000 | 4500x2050x2850 |
250T/5000 | 2500 | 5000 | 4000 | 350 | 250 | 520 | 18.5 | 18000 | 5500x2050x2850 |
250T/6000 | 2500 | 6000 | 4800 | 400 | 250 | 520 | 18.5 | 20500 | 6500x2150x2900 |
300T/3200 | 3000 | 3200 | 2600 | 400 | 250 | 520 | 22 | 14500 | 4000x2100x2980 |
300T/4000 | 3000 | 4000 | 3100 | 400 | 250 | 520 | 22 | 17000 | 4500x2100x2980 |
300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 520 | 22 | 19000 | 5500x2150x2980 |
300T/6000 | 3000 | 6000 | 4800 | 400 | 250 | 520 | 22 | 21500 | 6500x2150x2980 |
400T/4000 | 4000 | 4000 | 3200 | 400 | 250 | 540 | 30 | 26000 | 4500x2300x3450 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 540 | 30 | 29000 | 5500x2300x3450 |
400T/6000 | 4000 | 6000 | 4800 | 400 | 250 | 540 | 30 | 34000 | 6500x2300x3500 |
500T/4000 | 5000 | 4000 | 3200 | 400 | 300 | 620 | 37 | 30000 | 4500x2450x3600 |
500T/5000 | 5000 | 5000 | 4000 | 400 | 300 | 620 | 37 | 36000 | 5500x2450x3600 |
500T/6000 | 5000 | 6000 | 4800 | 400 | 300 | 620 | 37 | 48000 | 6500x2500x3700 |
600T/4000 | 6000 | 4000 | 3100 | 400 | 300 | 620 | 45 | 40000 | 4500x2500x3700 |
600T/6000 | 6000 | 6000 | 4800 | 400 | 300 | 620 | 45 | 50000 | 6500x2600x3800 |
Specifications

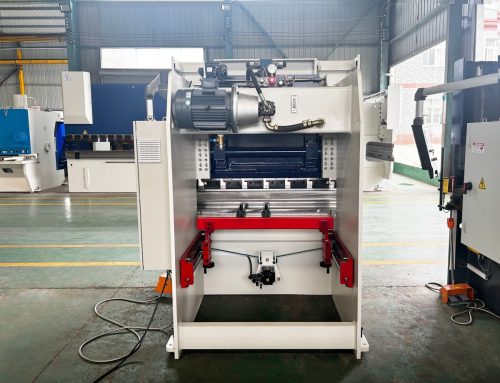

01. Germany Siemens Motor (standard)
Uses three-phase asynchronous motor and large flow pump as hydraulic power source. High efficiency, reliability, energy saving, low noise, and low vibration.
02. Bosch-Rexroth Valve Group (standard)
High energy efficiency, easy to maintain and modify. Compact and versatile for a wide range of applications. Highly reliable, efficient, and environmentally friendly.
03. American Sunny Oil Pump (standard)
Compact design and easy to operate. Long service life, low operating noise, and fast heat dissipation.
04. Zhongtai Travel Switch (standard)
Higher frequency response with lower failure rate. Ensures higher speed and smoother machine operation.
05. Mechanical Crowning (standard)
Obtains precise compensation via system control to ensure consistent and high-quality bending accuracy across full length.
06. Manual Crowning System (optional)
Adjusted manually to compensate deflection, ensuring high straightness of the sheet metal workpiece and accurate bending angles.
07. Italy DSP/MSD Laser Protection (optional)
Features dynamic detection area. Instantly stops equipment if an opaque object interrupts the beam to protect operator safety.
08. AYGD Photoelectric Protection (optional)
Sensitive response and long service life. Equipped with custom filters against sunlight interference; dust and oil resistant.
09. Zhongtai Backgauge Finger Stop (standard)
Swappable design for easy replacement. Provides precise dimension control by adjusting the position of the stop fingers.
10. Backgauge Motor (standard)
Precision gear motor featuring high torque and built-in encoder for accurate positioning feedback.
11. Hiwin Ball Screw & Linear Guide (standard)
Hiwin high-precision ball screw and linear guide rail. Ensures smooth transmission and high adjustment accuracy.
12. Schneider Electrical Components (standard)
Includes overload, short-circuit, and leakage protection. Highly stable, safe, energy-efficient, and impact-resistant.
13. Zhongtai Brand Fast Clamping (standard)
3-step quick clamping system allowing single-operator tool changes. Ideal for production requiring frequent punch replacements.
14. Zhongtai Movable Front Support (standard)
Supports workpieces of various sizes and shapes, reducing errors or damage caused by material sagging or movement.
E21 ESTUN
TP10s China
E300 ESTUN
DA41S DELEM
FAQ
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
