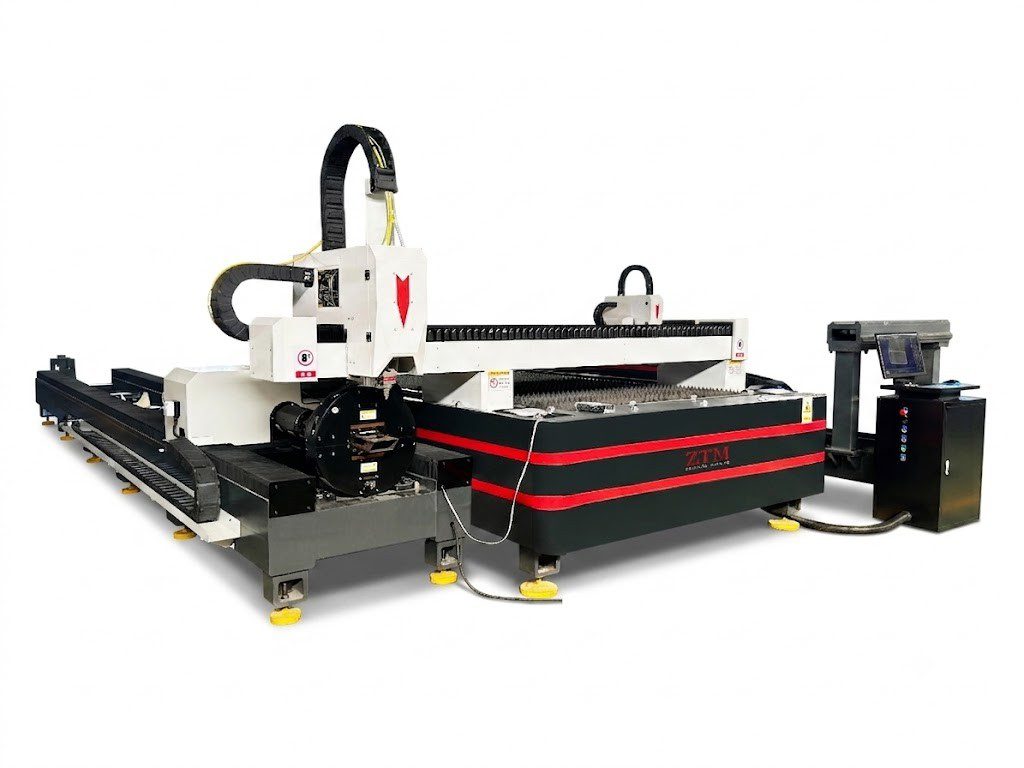

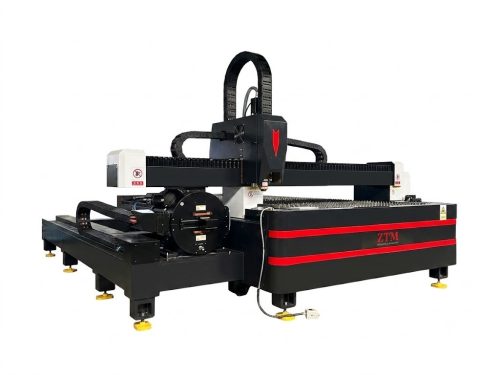

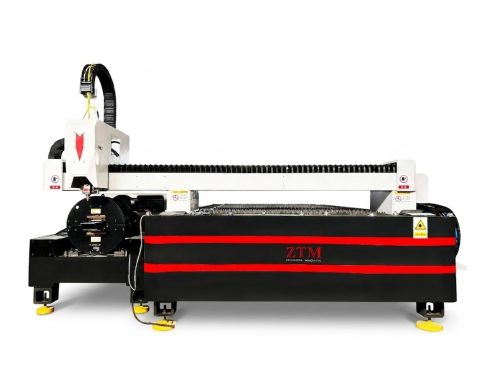

4015-1500W Sheet Metal and Pipe Fiber Laser Cutting Machine

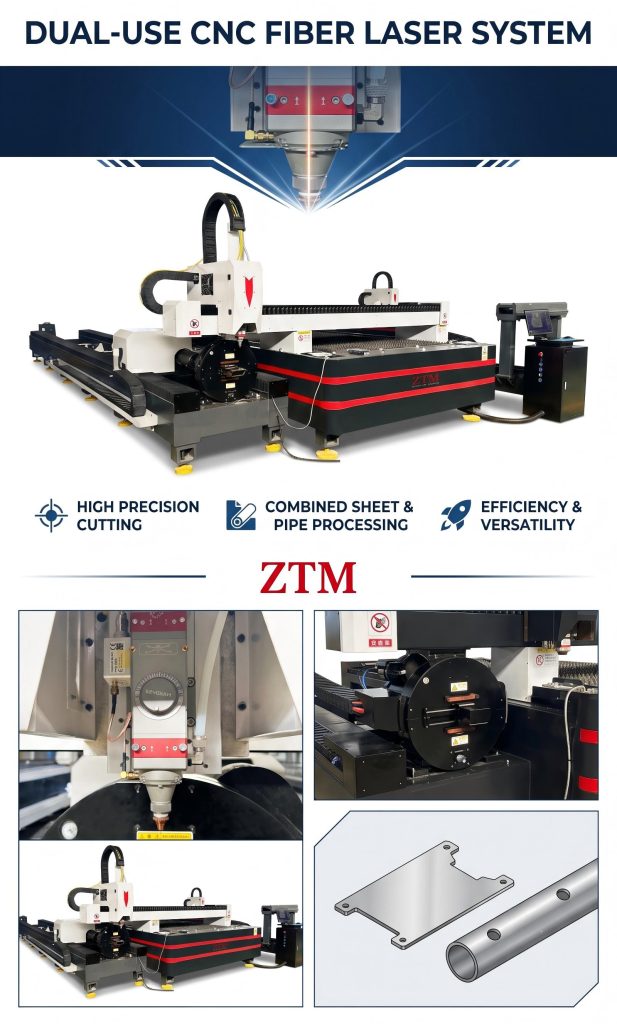

- Integrated Dual-Use Sheet Metal & Pipe Fiber Laser Cutting System
- 1500W High-Efficiency Fiber Laser Source with Low Energy Consumption
- Heavy-Duty 4015 Working Area for Precise Plate & Tube Processing
- Intelligent Auto-Centering Rotary Chuck & CNC Control System
- Stable Industrial Structure & High Repeat Positioning Accuracy
Angebot anfordern
Geben Sie die benötigte Menge ein und fügen Sie sie Ihrer Angebotsliste für Preisanfragen hinzu.
Description
| Parameter | Wert |
| Machine Model | ZTM-4015 (1500W Sheet & Tube Combo) |
| Laser Power | 1500W (Raycus / MAX optional) |
| Laser Wavelength | 1080 nm |
| Sheet Cutting Area (L×W) | 4000 mm × 1500 mm (4015) |
| Pipe Cutting Diameter | Φ 20 mm – 220 mm (Round / Square / Rectangular Tube) |
| Max. Pipe Cutting Length | 3000 mm / 6000 mm |
| X/Y Axis Positioning Accuracy | ±0.03 mm/m |
| Repeat Positioning Accuracy | ±0.02 mm |
| Max. Linkage Speed | 100 m/min |
| Control System | Cypcut / FSCUT CNC Control System |
| Kernkomponenten | Laser Generator, Cutting Head, Gear Rack, Servo Motor, Reducer, Bed Frame |
| Power Supply / Voltage | 380V, 50Hz / 60Hz, 3-Phase |
| Maschinen-Testbericht | Verfügbar |
| Video-Werksinspektion | Verfügbar |
| Gewährleistungsfrist | 2 Years (1 Year for Core Components) |
| Overall Dimensions (L×W×H) | 5800 × 2800 × 2200 mm |
| Total Weight (KG) | Approx. 4500 KG |
| Application Material | Stainless Steel, Carbon Steel, Galvanized Sheet, Aluminum, Brass |
| Product Category | Fiber Laser Cutting Machine / Sheet & Pipe Laser Cutter |
| Main Keywords | 1500W Sheet Pipe Fiber Laser Cutting Machine, 4015 Metal Tube Laser Cutter |
Spezifikationen
FAQ
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
