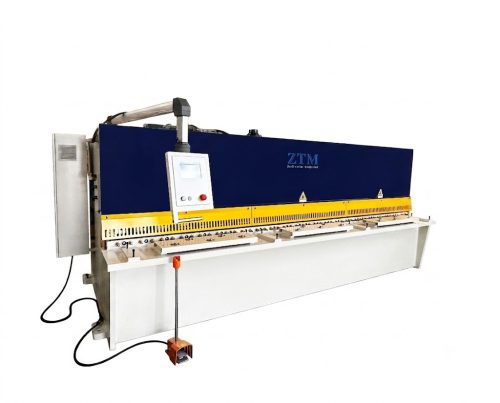

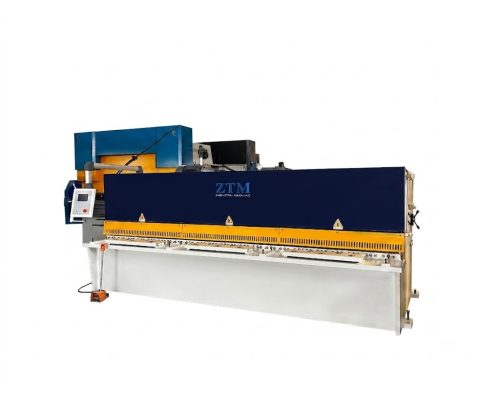

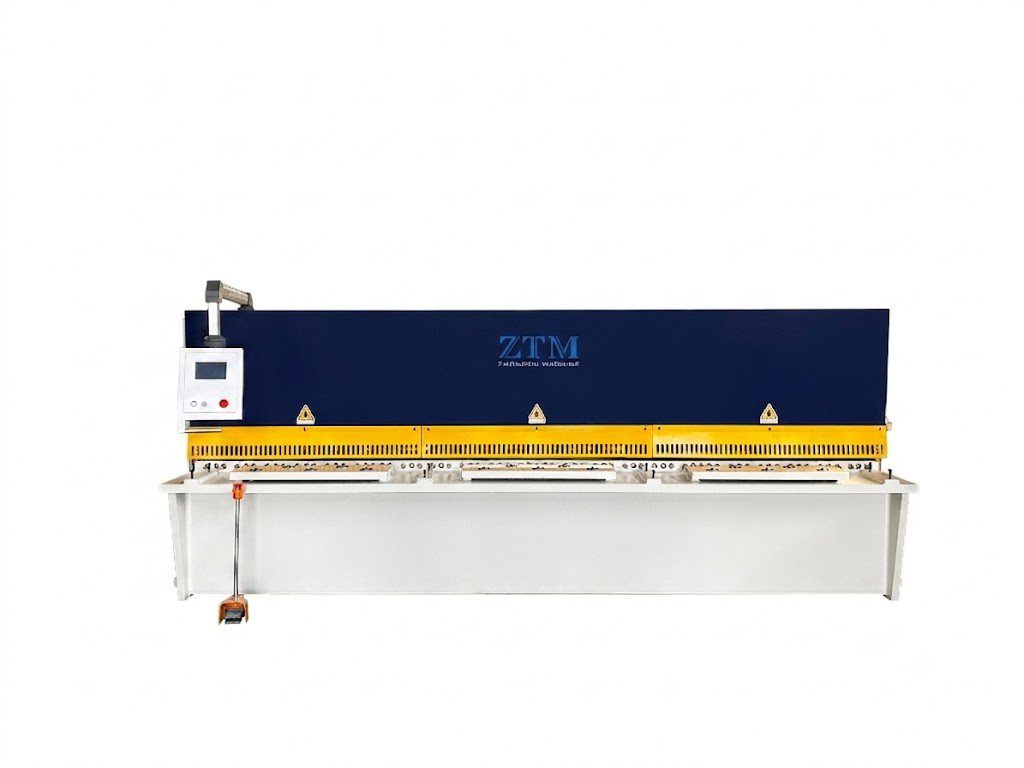

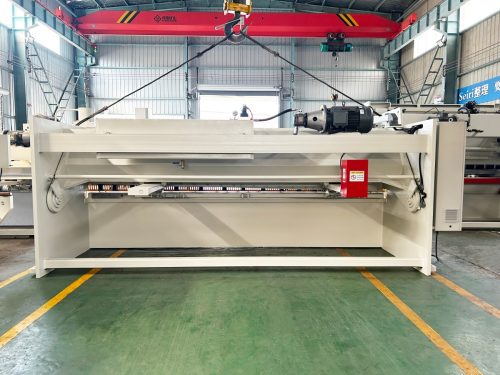

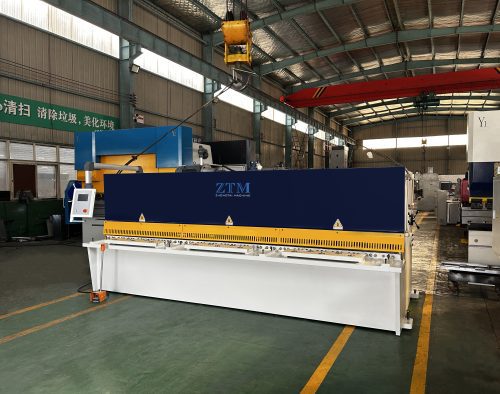

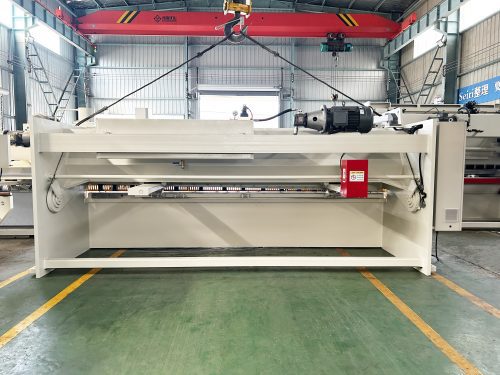

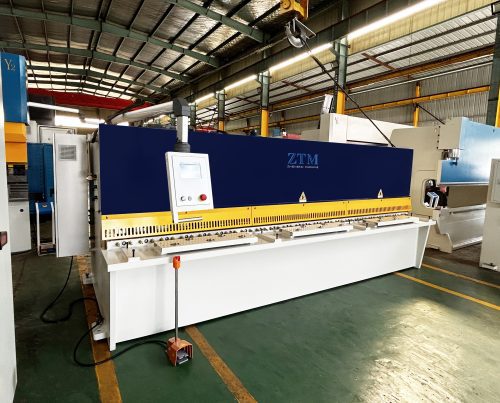

QC12Y 10×4000 Hydraulic Swing Beam Shearing Machine
- Heavy-Duty 4M Steel Frame: High-rigidity welded frame designed for 4000mm long plate cutting with minimal deflection.
- Advanced NC Backgauge Control: Intelligent positioning system for quick setup, high accuracy, and consistent repeatable cuts.
- 10x4000mm Large Cutting Capacity: Efficiently shears mild steel plates up to 10mm thickness and 4000mm width.
- Durable Shear Blades & Hydraulic System: Premium multi-edge blades and high-pressure hydraulic unit for extended service life.
- Safe & Ergonomic Operation: Equipped with front protection guards, shadow line lighting, and emergency stop for maximum operator safety.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
| Parameter | Value |
| Product Name | Metal Steel Cutting Machine |
| Name | Hydraulic Guillotine Metal Shearing Machine |
| Brand Name | ZTM |
| Type | Hydraulic Cutting Tools |

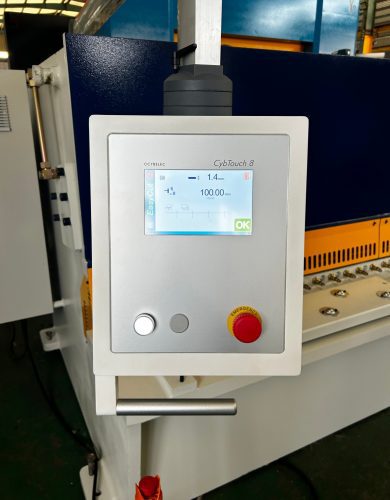

| Control System | CT8 Control System |
| Max. Cutting Width (mm) | 4000 |
| Max. Cutting Thickness (mm) | 10 mm |
| Blade Length (mm) | 4100 |
| Backgauge Travel (mm) | 20 – 580 mm |
| Throat Depth (mm) | 120 |
| Power (kW) | 18.5 kW |
| Voltage | 380 V |
| Cutting Material | Metal, Stainless Steel, Carbon Steel |
| Application | Industrial Metal Cutting |
| Function | Shear Steel Plate |
| Automatic Level | Fully Automatic |
| Core Components | Motor |
| Dimensions (L*W*H) (mm) | 4700*1850*1900 |
| Weight (kg) | 10400 kg (10.4 T) |
| Key Selling Points | High-Accuracy |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty Period | 1 Year |
| After-sales Service Provided | Service Machinery Overseas |
| Place of Origin | Anhui, China |
| Keyword | Metal Steel CNC Cutting Machine |
Specifications
| Model | Thickness (mm) | Width (mm) | Cutting Angle (°) | Throat Depth (mm) | Backgauge Travel (mm) | Strokes Cycle (T/min) | Power (kW) | Overall Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|
| 4×2500 | 4 | 2500 | 1.5 | 100 | 20-480 | 18 | 5.5 | 3200x1600x1600 |
| 4×3200 | 4 | 3200 | 1.5 | 100 | 20-480 | 15 | 5.5 | 3900x1600x1600 |
| 4×4000 | 4 | 4000 | 1.5 | 100 | 20-480 | 12 | 7.5 | 4700x1600x1600 |
| 4×5000 | 4 | 5000 | 1.5 | 100 | 20-580 | 12 | 11 | 5800x1750x1850 |
| 4×6000 | 4 | 6000 | 1.5 | 100 | 20-580 | 8 | 11 | 6800x1750x1850 |
| 6×2500 | 6 | 2500 | 1.5 | 100 | 20-580 | 15 | 7.5 | 3200x1650x1800 |
| 6×3200 | 6 | 3200 | 1.5 | 100 | 20-580 | 12 | 7.5 | 3900x1650x1800 |
| 6×4000 | 6 | 4000 | 1.5 | 100 | 20-580 | 10 | 7.5 | 4700x1650x1800 |
| 6×5000 | 6 | 5000 | 1.5 | 100 | 20-580 | 10 | 11 | 5800x1800x1950 |
| 6×6000 | 6 | 6000 | 2 | 100 | 20-580 | 8 | 11 | 6800x1800x1950 |
| 8×2500 | 8 | 2500 | 2 | 100 | 20-580 | 16 | 7.5 | 3200x1700x1850 |
| 8×3200 | 8 | 3200 | 2 | 100 | 20-580 | 14 | 7.5 | 3900x1700x1850 |
| 8×4000 | 8 | 4000 | 2 | 100 | 20-580 | 11 | 7.5 | 4700x1700x1850 |
| 8×5000 | 8 | 5000 | 2 | 100 | 20-580 | 10 | 11 | 5800x1900x2100 |
| 8×6000 | 8 | 6000 | 2 | 120 | 20-580 | 8 | 11 | 6800x1900x2200 |
| 10×2500 | 10 | 2500 | 2 | 120 | 20-580 | 12 | 11 | 3200x1850x1900 |
| 10×3200 | 10 | 3200 | 2 | 120 | 20-580 | 10 | 11 | 3900x1850x1900 |
| 10×4000 | 10 | 4000 | 2 | 120 | 20-580 | 8 | 18.5 | 4700x1850x1900 |
| 10×5000 | 10 | 5000 | 2 | 120 | 20-580 | 7 | 18.5 | 4700x1850x1900 |
| 10×6000 | 10 | 6000 | 2 | 120 | 20-580 | 6 | 18.5 | 5800x2000x2150 |
| 12×2500 | 12 | 2500 | 2.5 | 120 | 20-800 | 11 | 18.5 | 6800x2000x2500 |
| 12×3200 | 12 | 3200 | 2.5 | 120 | 20-800 | 10 | 18.5 | 3200x2050x2150 |
| 12×4000 | 12 | 4000 | 2.5 | 120 | 20-800 | 8 | 18.5 | 4700x2050x2150 |
| 12×5000 | 12 | 5000 | 2.5 | 120 | 20-800 | 7 | 22 | 5800x2200x2200 |
| 12×6000 | 12 | 6000 | 2.5 | 120 | 20-800 | 6 | 22 | 6800x2400x2600 |
| 16×2500 | 16 | 2500 | 2.5 | 120 | 20-800 | 10 | 18.5 | 3200x2150x2250 |
| 16×3200 | 16 | 3200 | 2.5 | 120 | 20-800 | 9 | 18.5 | 3900x2150x2250 |
| 16×4000 | 16 | 4000 | 2.5 | 120 | 20-800 | 8 | 22 | 4700x2150x2250 |
| 16×5000 | 16 | 5000 | 2.5 | 120 | 20-800 | 6 | 30 | 5800x2500x2500 |
| 16×6000 | 16 | 6000 | 2.5 | 120 | 20-800 | 6 | 37 | 6800x2500x2700 |
| 20×2500 | 20 | 2500 | 3 | 120 | 20-800 | 8 | 22 | 3200x2250x2350 |
| 20×3200 | 20 | 3200 | 3 | 120 | 20-800 | 7 | 22 | 3900x2250x2350 |
| 20×4000 | 20 | 4000 | 3 | 120 | 20-800 | 6 | 30 | 4700x2350x2350 |
| 20×5000 | 20 | 5000 | 3 | 120 | 20-800 | 5 | 37 | 5800x2600x2700 |
| 20×6000 | 20 | 6000 | 3 | 120 | 20-800 | 4 | 37 | 6800x2600x2900 |
| 25×2500 | 25 | 2500 | 3 | 120 | 20-800 | 6 | 37 | 3200x2300x2500 |
| 25×3200 | 25 | 3200 | 3 | 120 | 20-800 | 5 | 37 | 3900x2300x2500 |
| 25×4000 | 25 | 4000 | 3 | 120 | 20-800 | 5 | 37 | 4700x2500x2600 |
| 25×5000 | 25 | 5000 | 3.5 | 120 | 20-800 | 4 | 45 | 5800x2700x2800 |
| 25×6000 | 25 | 6000 | 3.5 | 120 | 20-800 | 4 | 45 | 6800x2700x2900 |
The prices displayed on the page are for reference only. For specific mechanical prices and customized configurations, please contact us.
FAQ
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
