Uses three phase asynchronous motor and large flow pump as hydraulic active power source. High efficiency, reliability, energy saving, low noise, low vibration, etc.

High energy efficiency easy to maintain and modify. Compact and versatile for a wide range of applications. Highly reliable, efficient and environmentally friendly.

Small size, easy to operate. Long service life, low noise. Easy to dissipate heat.

Higher frequency response, lower failure rate. Higher speed and smoother machine operation.

By CNC control system, precise compensation is obtained to ensure high quality bending accuracy.

Manual Crowning System is compensated by manual adjustment to ensure the straightness of the sheet metal workpiece and the accuracy of the bending angle.

It has detection area, if an opaque object interrupts the beam, the control system stops the device. Fully protects the personal safety of the operator.

Sensitive response and long service life. Customised filters protect against sunlight interference. Dust and oil resistant, rugged construction.

Can be swapped at any time, easy for customers to replace according to wear condition. Precise size control by adjusting stop finger position.

Precision gear motor, high torque, equipped with encoder for accurate positioning accuracy.

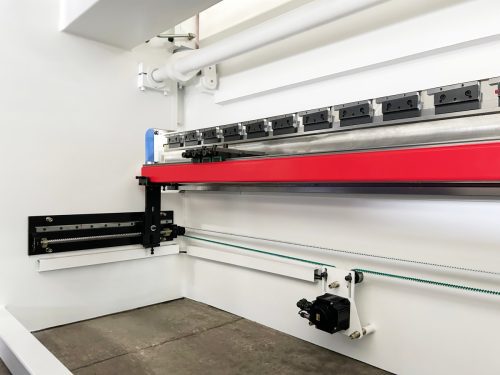

Hiwin high precision ball screw and linear guide. Smooth transmission and high adjustment precision.

Overload protection, short circuit protection, leakage protection. Sensitive performance, more stable and safe. Energy saving, strong impact resistance.

3-step fast tooling clamp. Quick clamping allows individual operation when dealing with longer punches requiring multiple clamps. Suitable for production requiring frequent tool replacement.

Suitable for workpieces of different shapes, sizes, and processing requirements, helping to locate and support sheets to reduce deformation or movement errors.

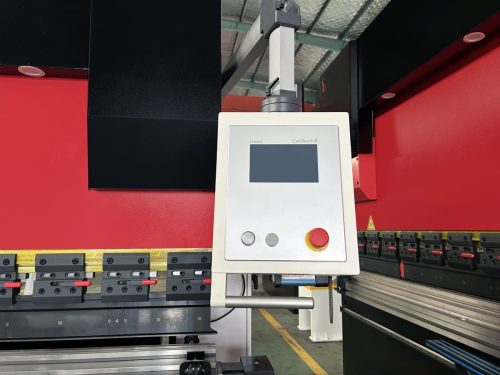

1. Positioning control of back gauge. Intelligent positioning control
2. Retract functions. Automatic reference searching
3. One-key parameter backup and restore. Fast position indexing
4. 40 programs storage space, each program has 25 steps
5. Power-off protection

1. GIVEAWAY: After the system is in place, distance at which bending gear begins to yield
2. GIVE DELAY: After system is in place, delay time for rear file to give up when bending
3. COUNT: Records current number of products processed

1. X, Y, R-axis servo control; selectable C-axis hydraulic / mechanical compensation
2. Accurate angle programming and calculation functions
3. Safe area boundary protection
4. Parameter one-key recovery function

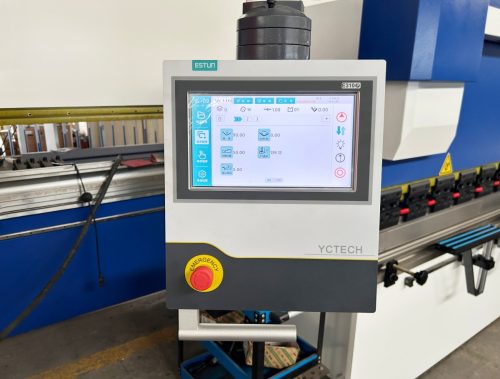

1. High Definition LCD display
2. Slide stop position control
3. Rear stop control and angle programming
4. Tooling parameter setting & escape control function
5. 100 program memory with 25 steps per program
