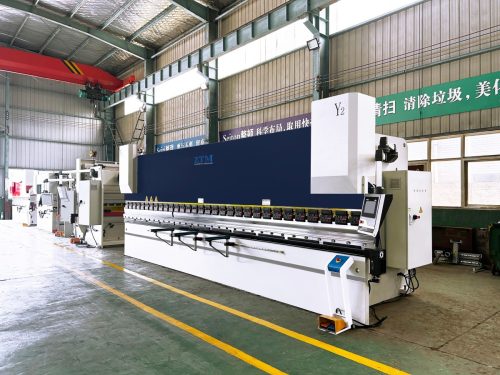

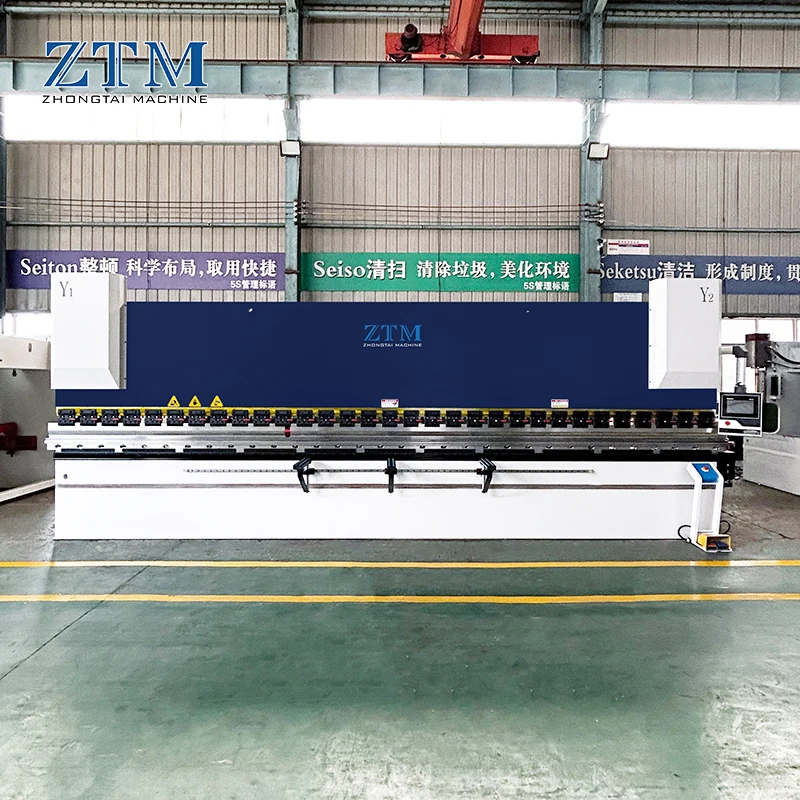

125T 6500mm CNC Electro-Hydraulic Press Brake
- 125T / 6500mm Extra-Long Bending Capacity

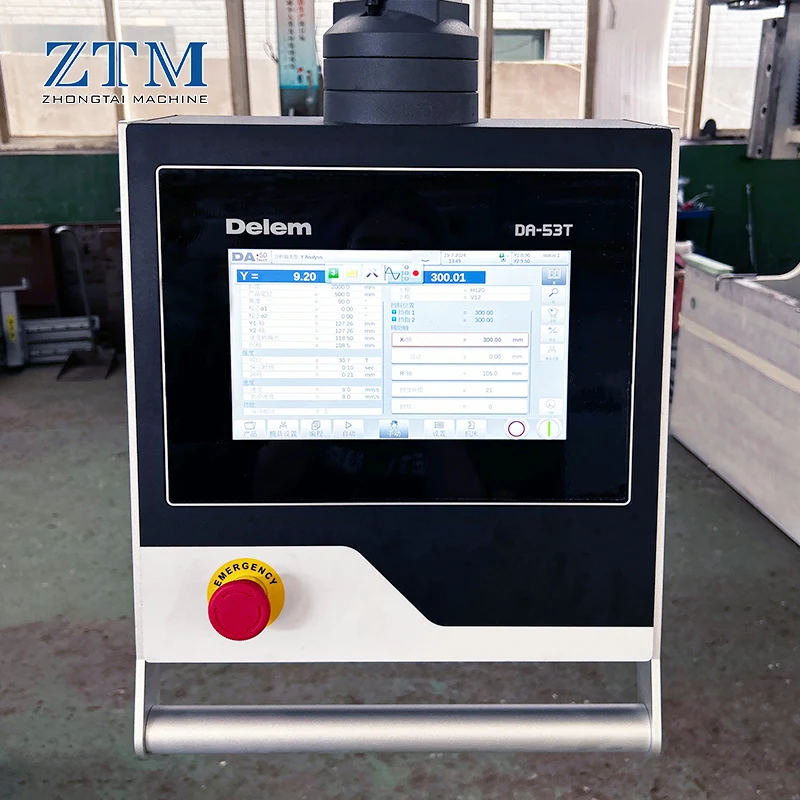

- Advanced Delem DA-53T 2D Graphical CNC Control

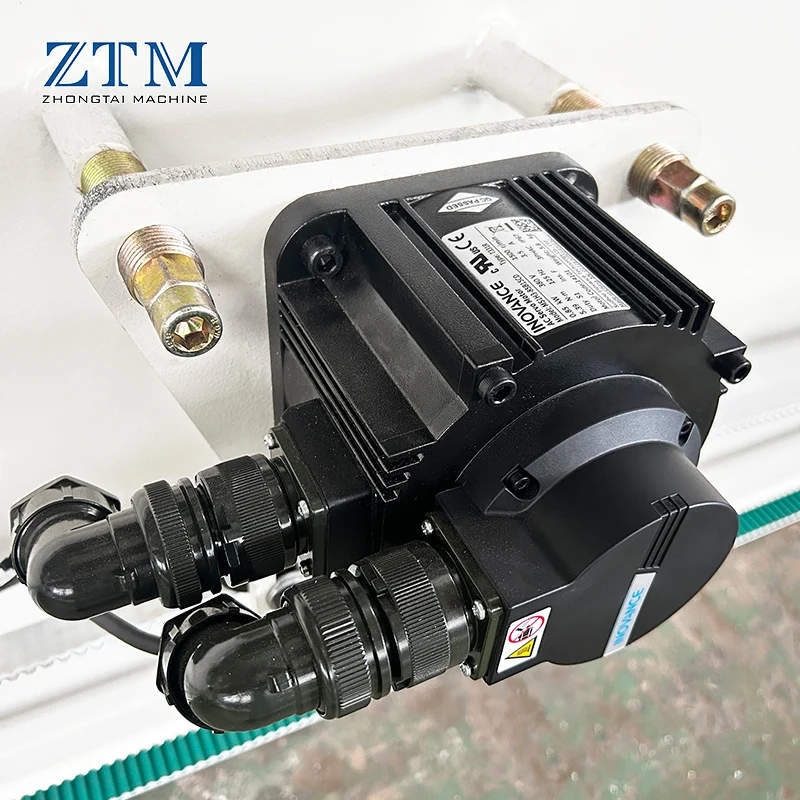

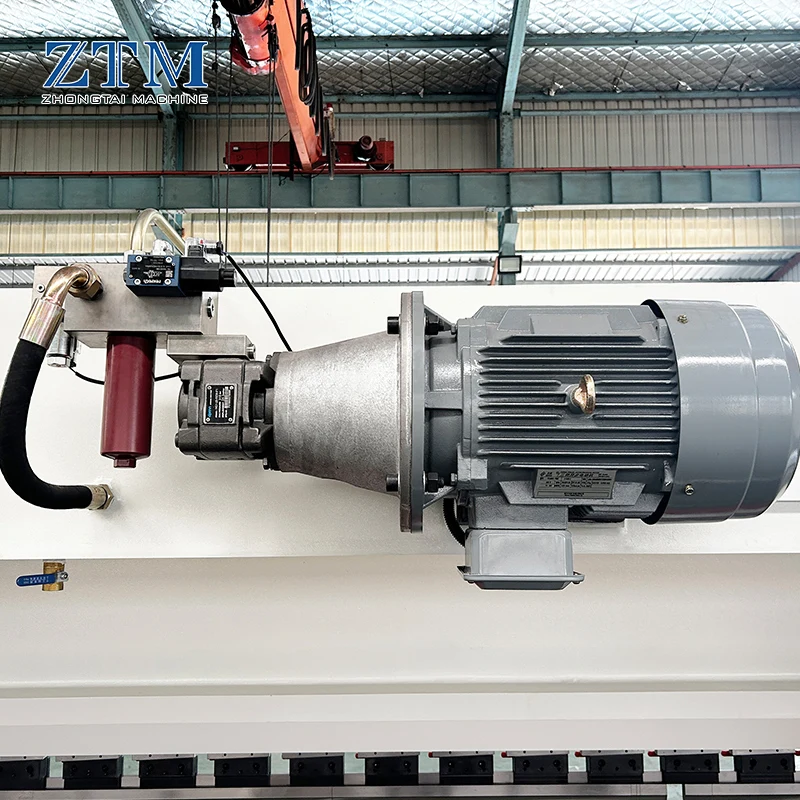

- High-Precision Electro-Hydraulic Servo System
- Energy-Saving & High-Efficiency Performance
- Heavy-Duty Rigid Frame & Superior Bending Accuracy
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Specifications
Electro-Hydraulic CNC Press Brake Highlights
- •Electro-Hydraulic Synchronization: Closed-loop proportional valves ensure high synchronization precision and repeat bending accuracy.
- •Advanced CNC Controllers: Compatible with world-class multi-axis controllers for 2D/3D graphical programming.

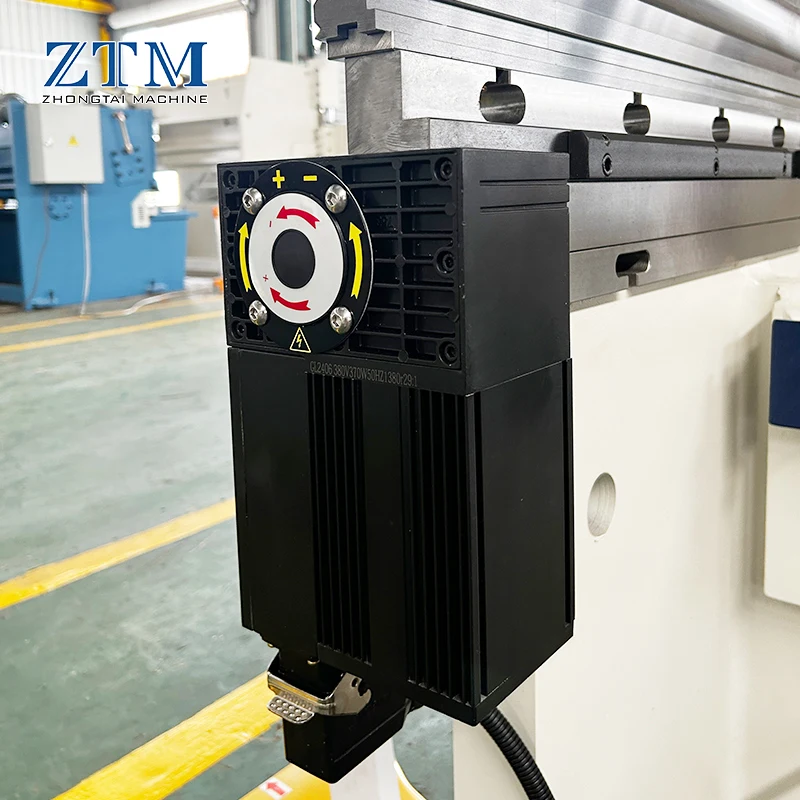

- •Automated Crowning: Motorized or hydraulic crowning systems automatically compensate for bed deflection.

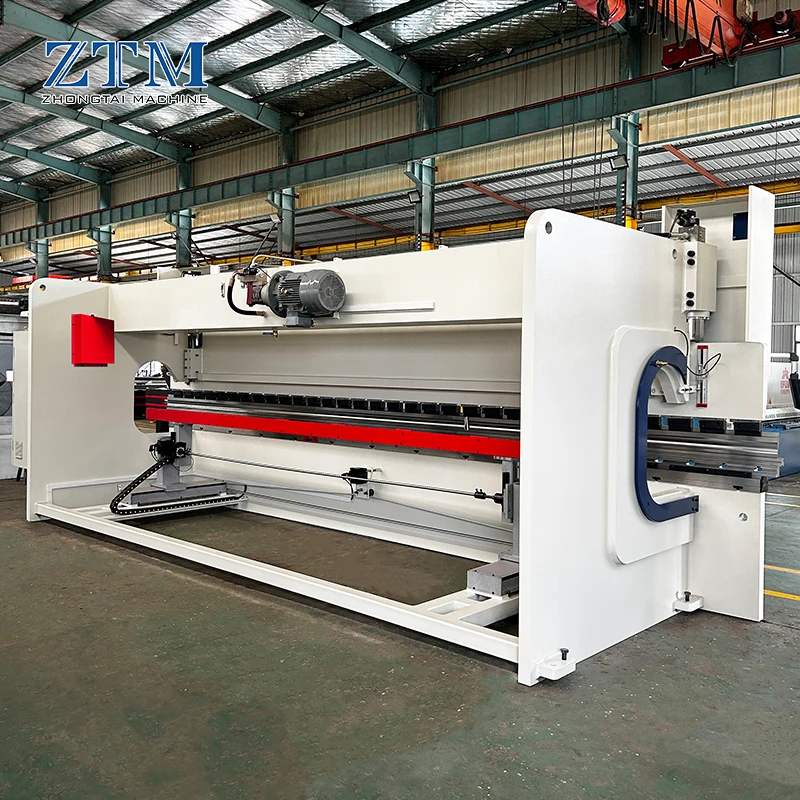

- •Heavy Industrial Build: Rigid mono-block welded frame treated with annealing to eliminate internal stress.

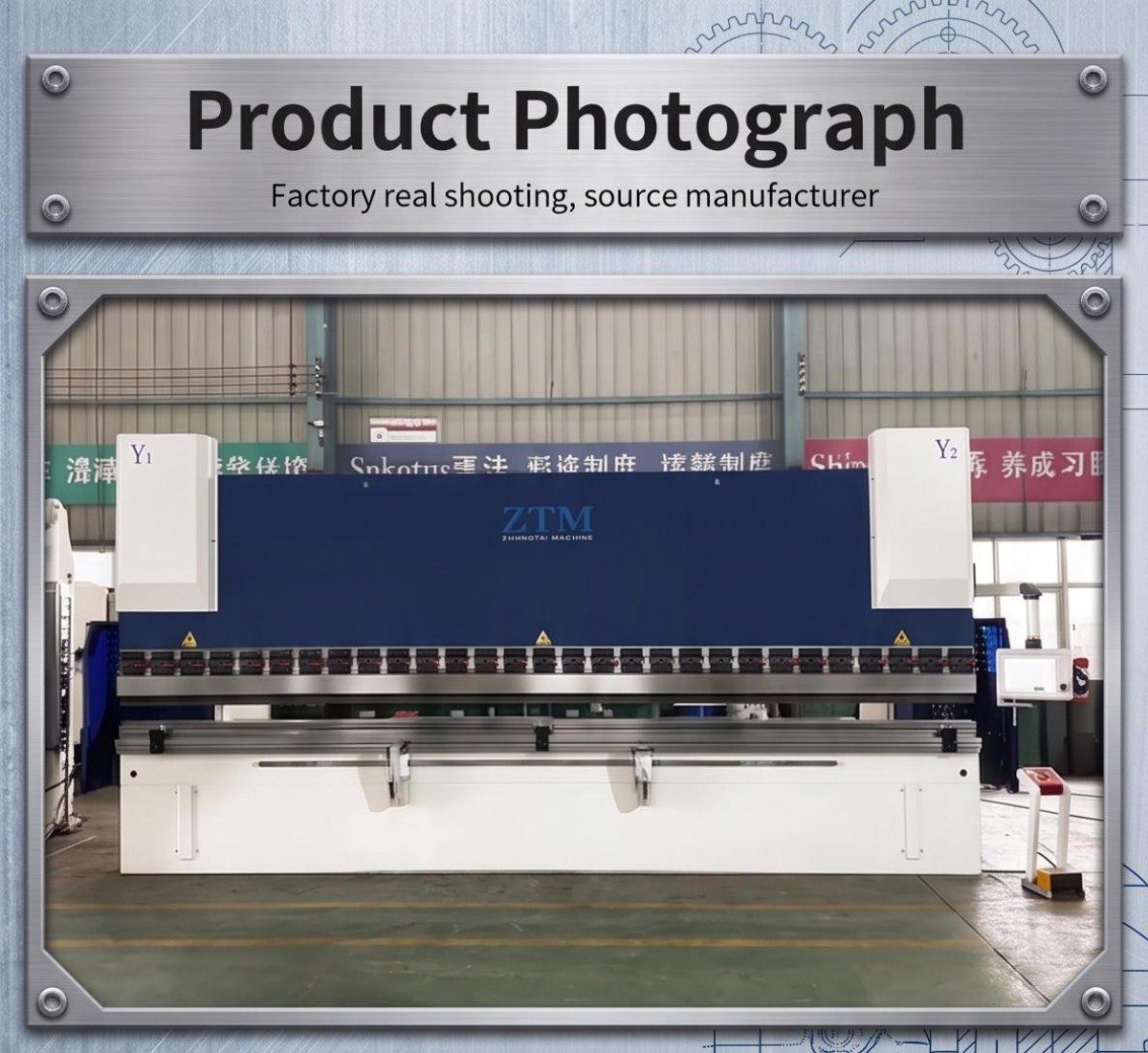

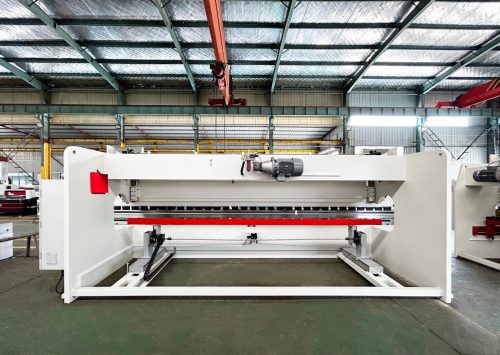

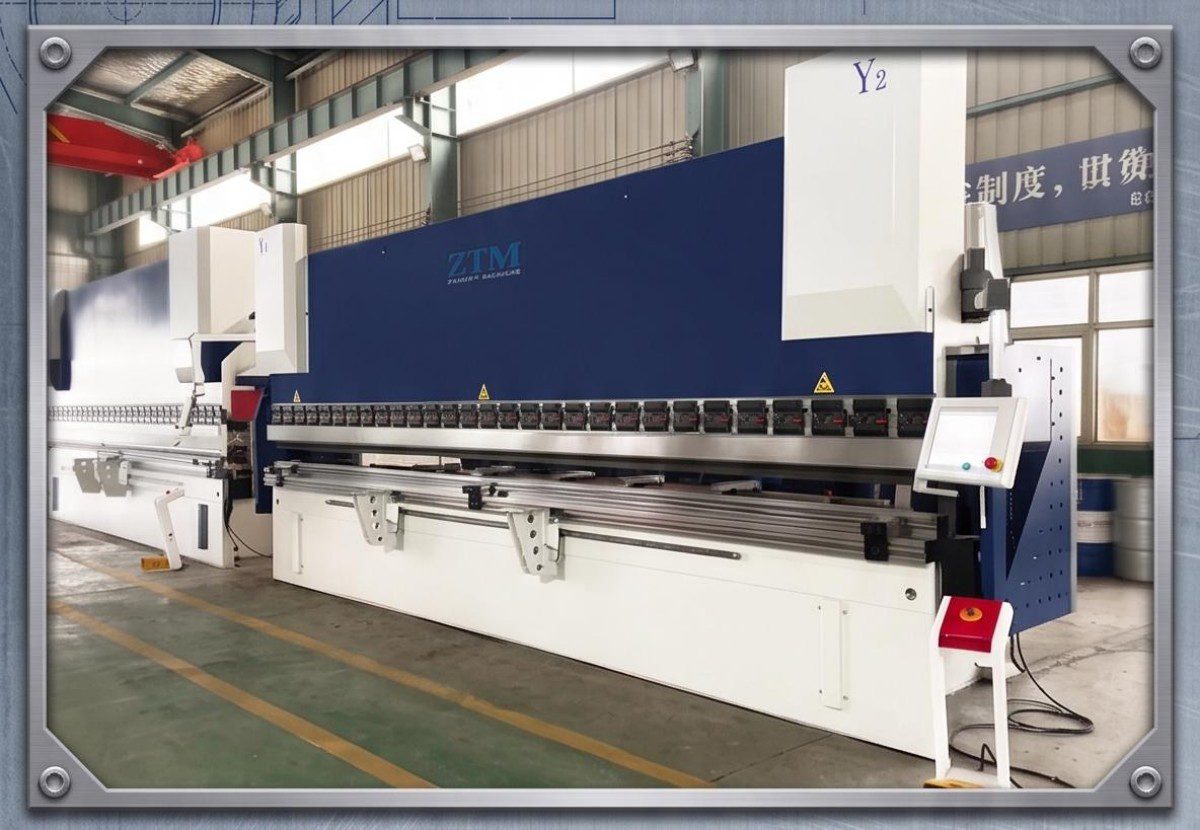

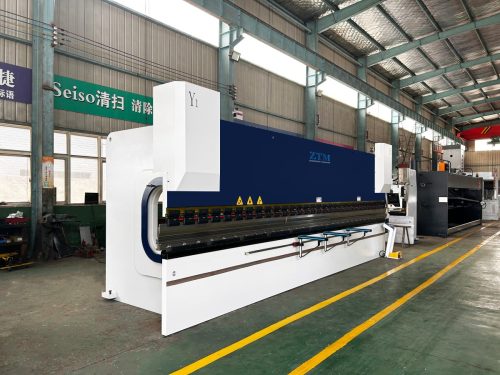

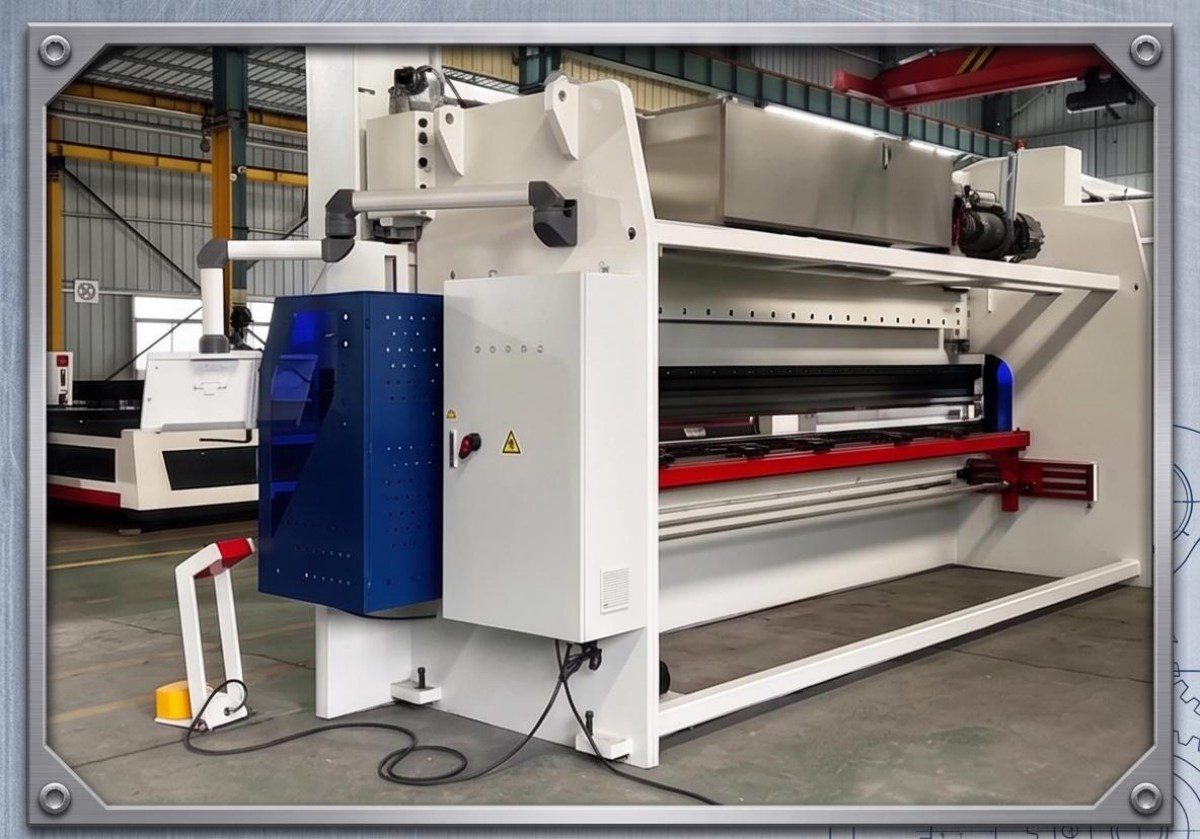

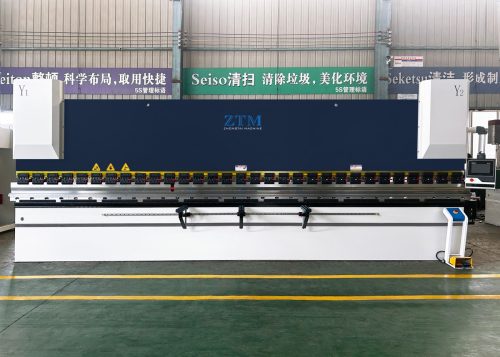

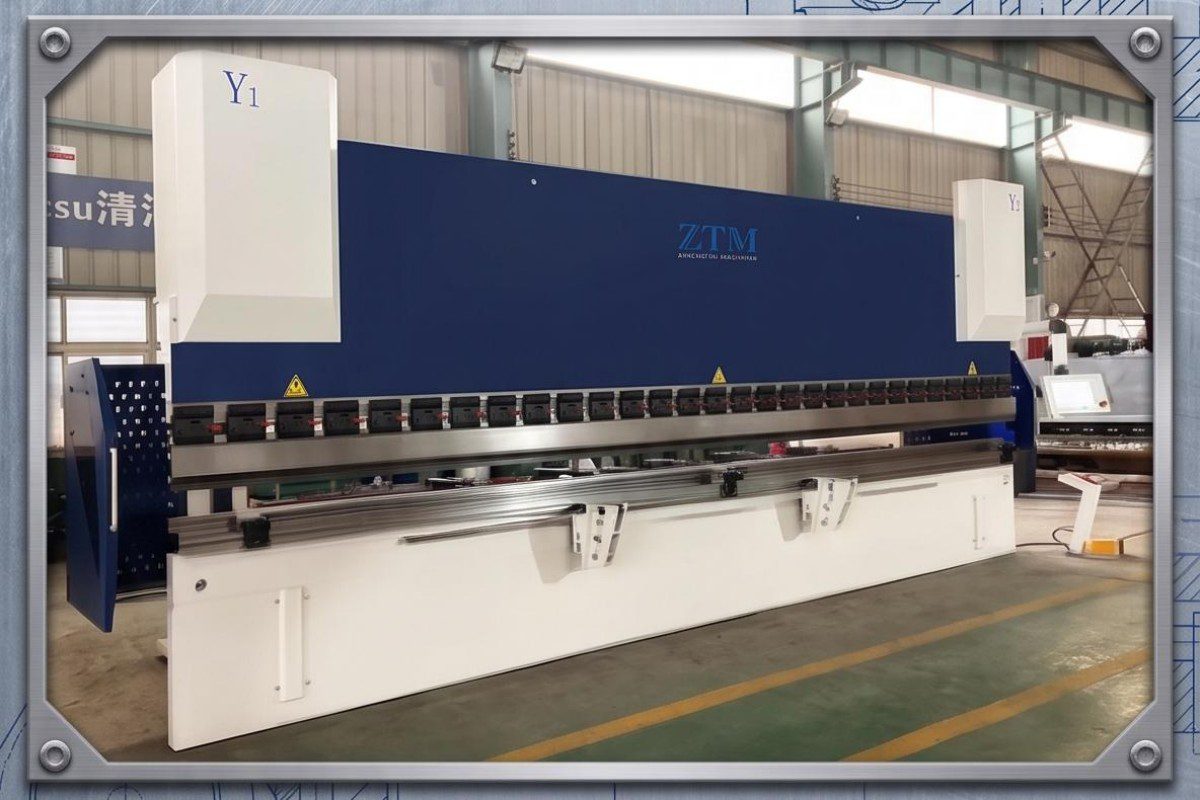

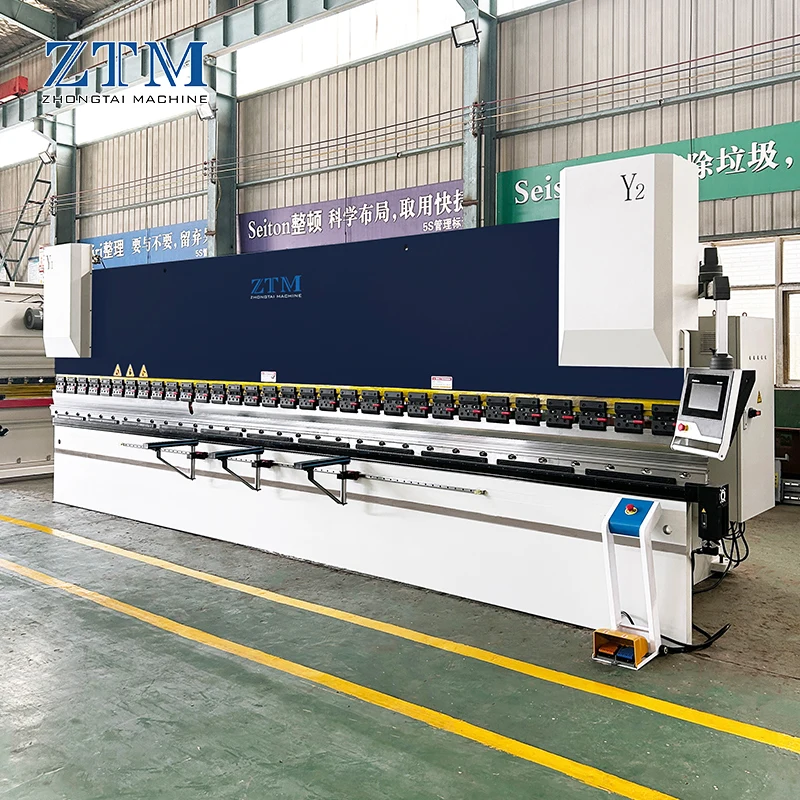

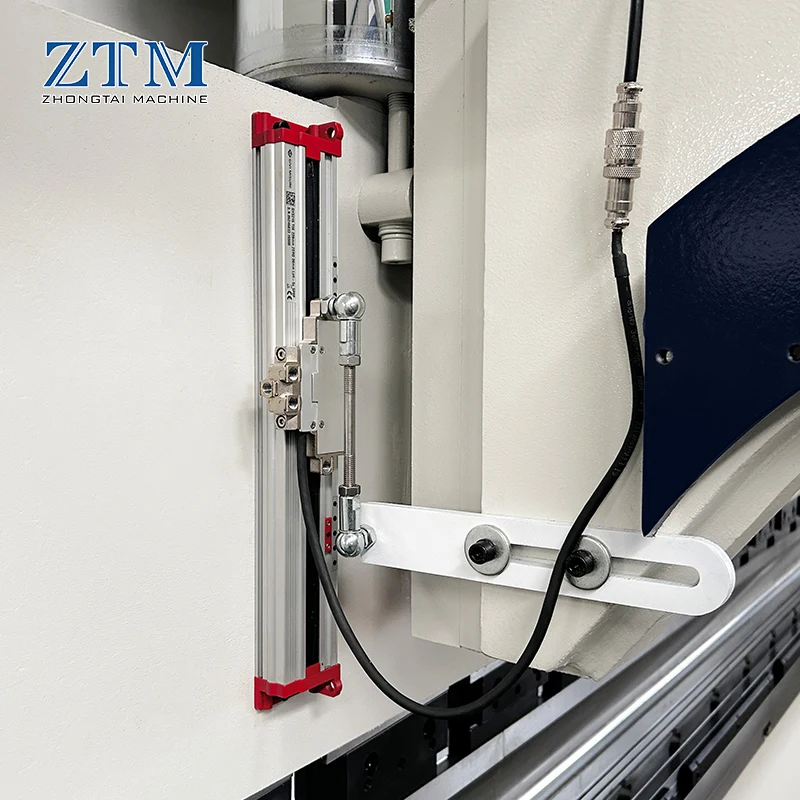

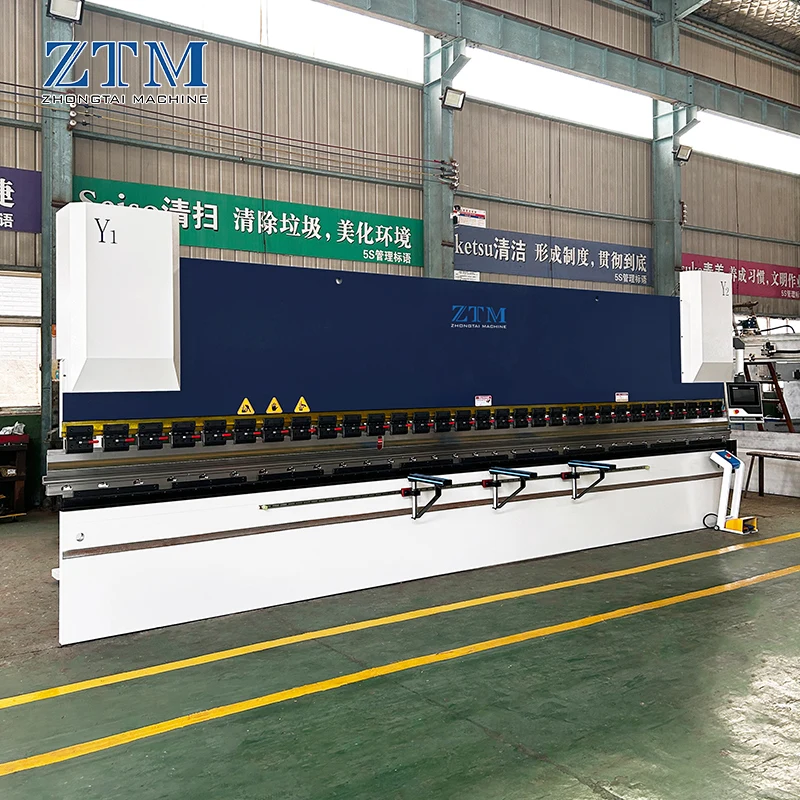

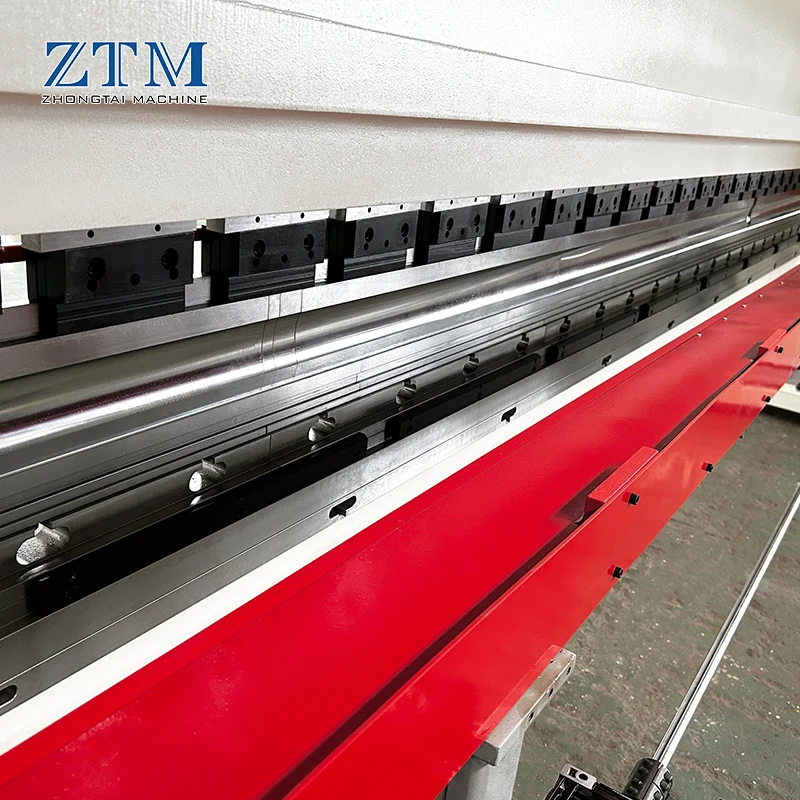

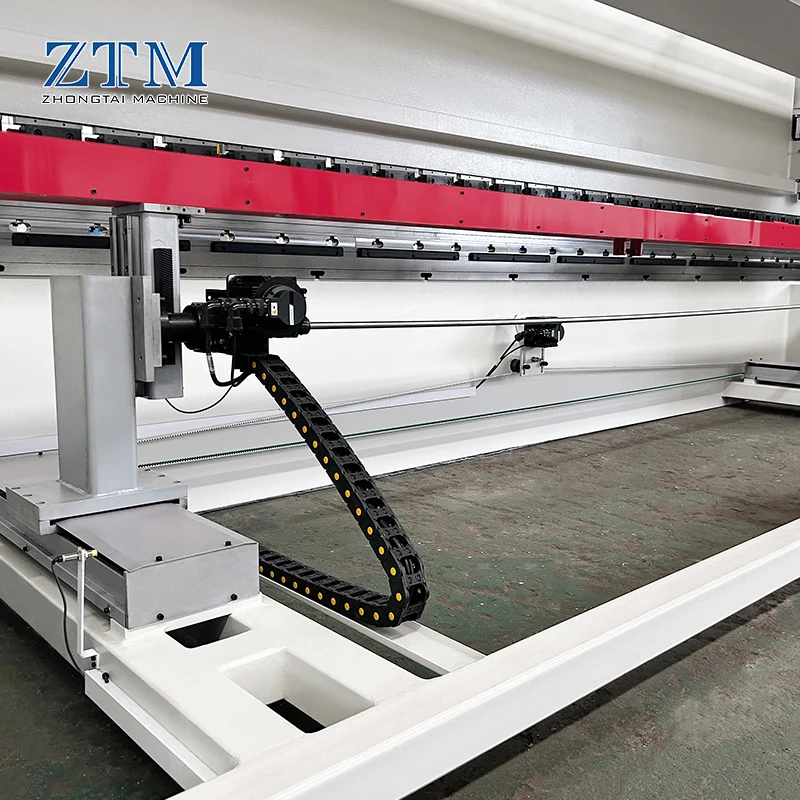

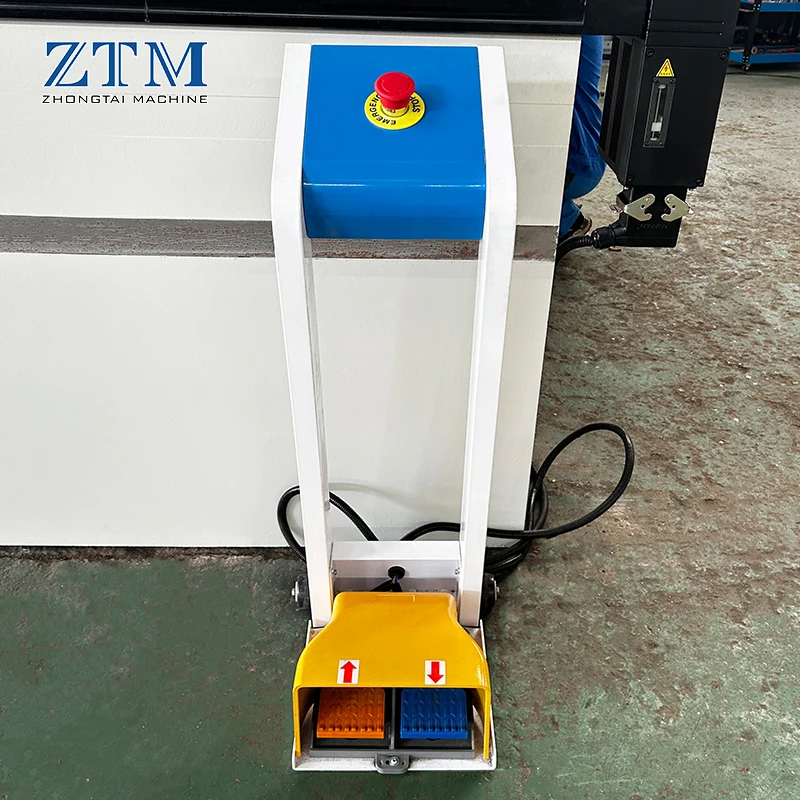

Machine Gallery & Details
Technical Parameter
Electro-hydraulic CNC Press Brake Technical Parameter
| Model | Nominal Pressure (kN) | Length of Table (mm) | Distance between Columns (mm) | Throat Depth (mm) | Stroke (mm) | Open Height (mm) | Main Motor (kW) | Overall Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|
| 40T/1300 | 400 | 1300 | 1120 | 250 | 150 | 460 | 5.5 | 2000*1500*2350 |
| 63T/1600 | 630 | 1600 | 1300 | 300 | 150 | 460 | 5.5 | 2300*1600*2500 |
| 63T/2500 | 630 | 2500 | 2050 | 300 | 150 | 460 | 5.5 | 3100*1600*2500 |
| 80T/2500 | 800 | 2500 | 2050 | 300 | 150 | 460 | 7.5 | 3100*1600*2600 |
| 100T/3200 | 1000 | 3200 | 2700 | 400 | 200 | 490 | 11 | 3800*1800*2600 |
| 100T/4000 | 1000 | 4000 | 3100 | 400 | 200 | 490 | 11 | 4600*1800*2600 |
| 125T/3200 | 1250 | 3200 | 2700 | 400 | 200 | 490 | 11 | 3800*1800*2700 |
| 125T/4000 | 1250 | 4000 | 3100 | 400 | 200 | 490 | 11 | 4600*1800*2700 |
| 160T/3200 | 1600 | 3200 | 2700 | 450 | 200 | 490 | 15 | 3800*2000*3100 |
| 160T/4000 | 1600 | 4000 | 3100 | 450 | 200 | 490 | 15 | 4600*2000*2800 |
| 220T/3200 | 2200 | 3200 | 2600 | 450 | 200 | 490 | 18.5 | 3800*2200*2850 |
| 220T/4000 | 2200 | 4000 | 3100 | 450 | 200 | 490 | 18.5 | 4600*2200*2850 |
| 250T/3200 | 2500 | 3200 | 2600 | 450 | 250 | 540 | 22 | 3800*2000*2900 |
| 250T/4000 | 2500 | 4000 | 3100 | 450 | 250 | 540 | 22 | 4600*2100*3100 |
| 250T/5000 | 2500 | 5000 | 3800 | 450 | 250 | 540 | 22 | 5600*2150*3150 |
| 250T/6000 | 2500 | 6000 | 4600 | 450 | 250 | 540 | 22 | 6600*2150*3150 |
| 300T/3200 | 3000 | 3200 | 2610 | 500 | 250 | 580 | 22 | 3800*2250*3200 |
| 300T/4000 | 3000 | 4000 | 2820 | 500 | 250 | 580 | 22 | 4600*2500*3400 |
| 300T/5000 | 3000 | 5000 | 3800 | 500 | 250 | 580 | 22 | 5600*2500*3400 |
| 300T/6000 | 3000 | 6000 | 4600 | 500 | 250 | 580 | 22 | 6600*2500*3400 |
| 400T/3200 | 4000 | 3200 | 2400 | 500 | 250 | 580 | 30 | 3800*2700*3500 |
| 400T/4000 | 4000 | 4000 | 3200 | 500 | 250 | 580 | 30 | 4600*2700*3500 |
| 400T/5000 | 4000 | 5000 | 3800 | 500 | 250 | 580 | 30 | 5600*2700*3500 |
| 400T/6000 | 4000 | 6000 | 4600 | 500 | 250 | 580 | 30 | 6600*2700*3500 |
| 500T/4000 | 5000 | 4000 | 3100 | 500 | 300 | 600 | 37 | 4600*2700*3500 |
| 500T/5000 | 5000 | 5000 | 3800 | 500 | 300 | 600 | 37 | 5600*2700*3500 |
| 500T/6000 | 5000 | 6000 | 5050 | 500 | 300 | 600 | 37 | 6600*2700*3600 |
| 600T/5000 | 6000 | 5000 | 3800 | 600 | 320 | 640 | 45 | 5600*3300*3900 |
| 600T/6000 | 6000 | 6000 | 5050 | 600 | 320 | 640 | 45 | 6600*3300*3900 |
| 600T/7000 | 6000 | 7000 | 5300 | 600 | 320 | 640 | 45 | 7600*3300*3900 |
| 700T/6000 | 7000 | 6000 | 4900 | 600 | 320 | 700 | 55 | 6600*3500*4000 |
| 800T/6000 | 8000 | 6000 | 4600 | 600 | 320 | 800 | 30*2 | 6600*3500*4000 |
About This Supplier
Zhongtai is a professional manufacturer that provides a full set of sheet metal processing equipment for global users. It is located in the important position of China’s Yangtze River Delta Economic Belt, with a professional technical research and development team and after-sales team. Since the establishment of the company, we insist on “technology innovation as the basis, product quality as the focus, customer satisfaction as the goal” business philosophy. Through the integration of the world’s most advanced sheet metal processing technology, our product performance has reached the advanced level of the global industry. Welcome friends from all over the world to visit our company.
Company Overview
Trade Show Participation
Packaging & Shipping Specifications
Competitive Advantages
Extended Company Profile
FAQ
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
