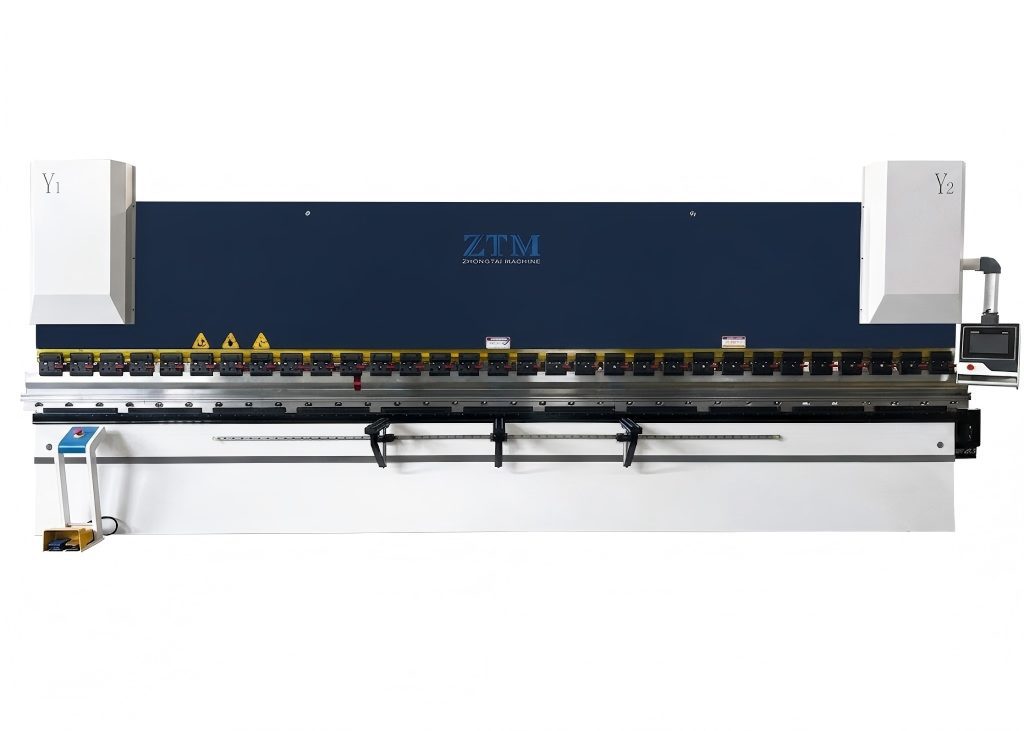

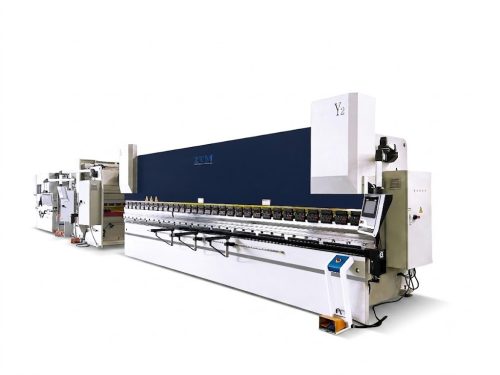

125 Ton 6500mm CNC Electro-Hydraulic Press Brake
- 125T / 6500mm Extra-Long Bending Capacity

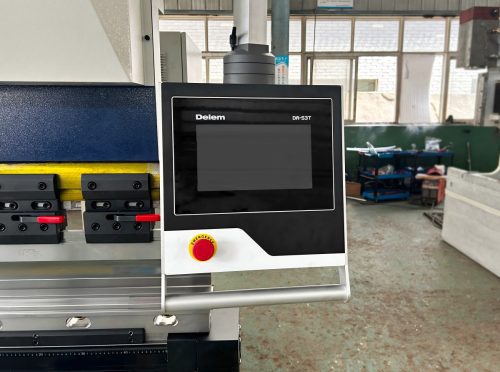

- Advanced Delem DA-53T 2D Graphical CNC Control
- High-Precision Electro-Hydraulic Servo System
- Energy-Saving & High-Efficiency Performance
- Heavy-Duty Rigid Frame & Superior Bending Accuracy
お見積りのお申し込み
ご希望の数量を入力し、見積もりリストに追加して、価格のお問い合わせを行ってください。.
重要なパラメータ
Model | Nominal Pressure(kn) | Length of Table(mm) | Distance between Columns(mm） | Throat Depth (mm) | Stroke (mm) | Open Height (mm) | Main Motor （kw） | Overall Dimensions LxWxH(mm) |
40T/1300 | 400 | 1300 | 1120 | 250 | 150 | 460 | 5.5 | 2000*1500*2350 |
63T/1600 | 630 | 1600 | 1300 | 300 | 150 | 460 | 5.5 | 2300*1600*2500 |
63T/2500 | 630 | 2500 | 2050 | 300 | 150 | 460 | 5.5 | 3100*1600*2500 |
80T/2500 | 800 | 2500 | 2050 | 300 | 150 | 460 | 7.5 | 3100*1600*2600 |
100T/3200 | 1000 | 3200 | 2700 | 400 | 200 | 490 | 11 | 3800*1800*2600 |
100T/4000 | 1000 | 4000 | 3100 | 400 | 200 | 490 | 11 | 4600*1800*2600 |
125T/3200 | 1250 | 3200 | 2700 | 400 | 200 | 490 | 11 | 3800*1800*2700 |
125T/4000 | 1250 | 4000 | 3100 | 400 | 200 | 490 | 11 | 4600*1800*2700 |
160T/3200 | 1600 | 3200 | 2700 | 450 | 200 | 490 | 15 | 3800*2000*3100 |
160T/4000 | 1600 | 4000 | 3100 | 450 | 200 | 490 | 15 | 4600*2000*2800 |
220T/3200 | 2200 | 3200 | 2600 | 450 | 200 | 490 | 18.5 | 3800*2200-2850 |
220T/4000 | 2200 | 4000 | 3100 | 450 | 200 | 490 | 18.5 | 4600*2200*2850 |
250T/3200 | 2500 | 3200 | 2600 | 450 | 250 | 540 | 22 | 3800*2000*2900 |
250T/4000 | 2500 | 4000 | 3100 | 450 | 250 | 540 | 22 | 4600*2100*3100 |
250T/5000 | 2500 | 5000 | 3800 | 450 | 250 | 540 | 22 | 5600*2150*3150 |
250T/6000 | 2500 | 6000 | 4600 | 450 | 250 | 540 | 22 | 6600*2150*3150 |
300T/3200 | 3000 | 3200 | 2610 | 500 | 250 | 580 | 22 | 3800*2250*3200 |
300T/4000 | 3000 | 4000 | 2820 | 500 | 250 | 580 | 22 | 4600*2500*3400 |
300T/5000 | 3000 | 5000 | 3800 | 500 | 250 | 580 | 22 | 5600*2500*3400 |
300T/6000 | 3000 | 6000 | 4600 | 500 | 250 | 580 | 22 | 6600*2500*3400 |
400T/3200 | 4000 | 3200 | 2400 | 500 | 250 | 580 | 30 | 3800*2700*3500 |
400T/4000 | 4000 | 4000 | 3200 | 500 | 250 | 580 | 30 | 4600*2700*3500 |
400T/5000 | 4000 | 5000 | 3800 | 500 | 250 | 580 | 30 | 5600*2700*3500 |
400T/6000 | 4000 | 6000 | 4600 | 500 | 250 | 580 | 30 | 6600*2700*3500 |
500T/4000 | 5000 | 4000 | 3100 | 500 | 300 | 600 | 37 | 4600*2700*3500 |
500T/5000 | 5000 | 5000 | 3800 | 500 | 300 | 600 | 37 | 5600*2700*3500 |
500T/6000 | 5000 | 6000 | 5050 | 500 | 300 | 600 | 37 | 6600*2700*3600 |
600T/5000 | 6000 | 5000 | 3800 | 600 | 320 | 640 | 45 | 5600*3300*3900 |
600T/6000 | 6000 | 6000 | 5050 | 600 | 320 | 640 | 45 | 6600*3300*3900 |
600T/7000 | 6000 | 7000 | 5300 | 600 | 320 | 640 | 45 | 7600*3300*3900 |
700T/6000 | 7000 | 6000 | 4900 | 600 | 320 | 700 | 55 | 6600*3500*4000 |
800T/6000 | 8000 | 6000 | 4600 | 600 | 320 | 800 | 30*2 | 6600*3500*4000 |
仕様
01. Germany Siemens Motor(standard)
Uses three phase asynchronous motor andlarge flow pump as hydraulic active powersource. High efficiency, reliability, energysaving, low noise, low vibration, etc.
02. Delta Servo Motor(optional)
Using servo motor as the main power source of hydraulic pump can save about 40% energy. The overall efficiency of the slider increases by about 7-20%. 0il temperature can be reduced by about 10-20°C.
03. Bosch-Rexroth ValveGroup (standard)
High energy efficiency easy to maintain and modify. Compact and versatile for a wide range of applications. Highly reliable,efficient and environmentally friendly.
04. American sunny oil pump(standard)
Small size, easy to operate. Long service life, low noise. Easy to dissipate heat.
05. Italy GlVl Grating Ruler(standard)
Precise measurement of deflection and feedback compensation. Ensure bending accuracy. Effectively prevents collision of non-standard parts.
06. Mechanical Crowning(standard)
By CNC control system, precise compensation is obtained to ensure high quality bending accuracy.
07. Italy DSP/MSD Laser Protection (optional)
It has detectionarea,if an opaque object interrupts the beam, the control system stops the device. Fully protects thepersonal safety of the operator.
08. AYGD Photoelectric Protection (optional)
Sensitive response and long service life Customised filters protect against sunlight interference. Dust and oil resistant, rugged construction.
09. Zhongtai Back guageFinger stop (standard)
Can be swapped at any time, easy for customers to replace according to the wear condition.Precise size control by adjusting the position of the stop finger.
10. Inovance BackgaugeServo Motor (standard)
Fast response for fast and accurate dynamic control. For fast and precise position, speed,torque and trajectory control.
11. Hiwin Ball Screw and Linear Guide (standard)
Hiwin high precision ball screw and linear guide. Smooth transmission and high adjustment precision.
12. Schneider Electrical Components (standard)
Overload protection, short circuit protection,leakage protection. Sensitive performance,more stable and safe. Energy saving, strong impact resistance.
13. Zhongtai Brand Fast Clamping (standard)
3-step fast tooling clamp,the quickclampingfeature allows for individual operationwhendealing with longer punches that require theuse of multiple clamps. Suitable for production environments that require frequent replacement of workpieces.
14. Zhongtai Movable Front Support (standard)
Suitable for workpieces of different shapes,sizes, and processing requirements, helping to locate and support workpieces. Reducing errors or damage caused by workpiece deformation or movement.
DA-53T DELEM
DA-58T DELEM
DA-66T DELEM
CybTouch 8 CYBLEC
CybTouch 12 CYBLEC
ESA-S630 ESA
ESA-S640 ESA
KT15 China Brand
よくある質問
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
