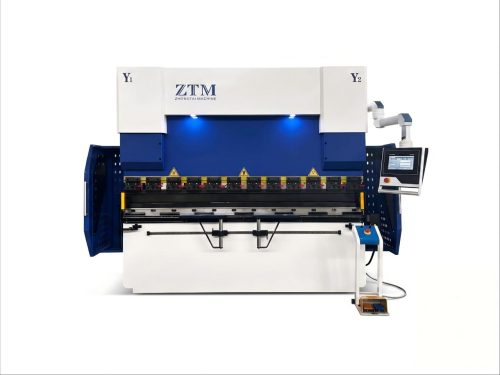

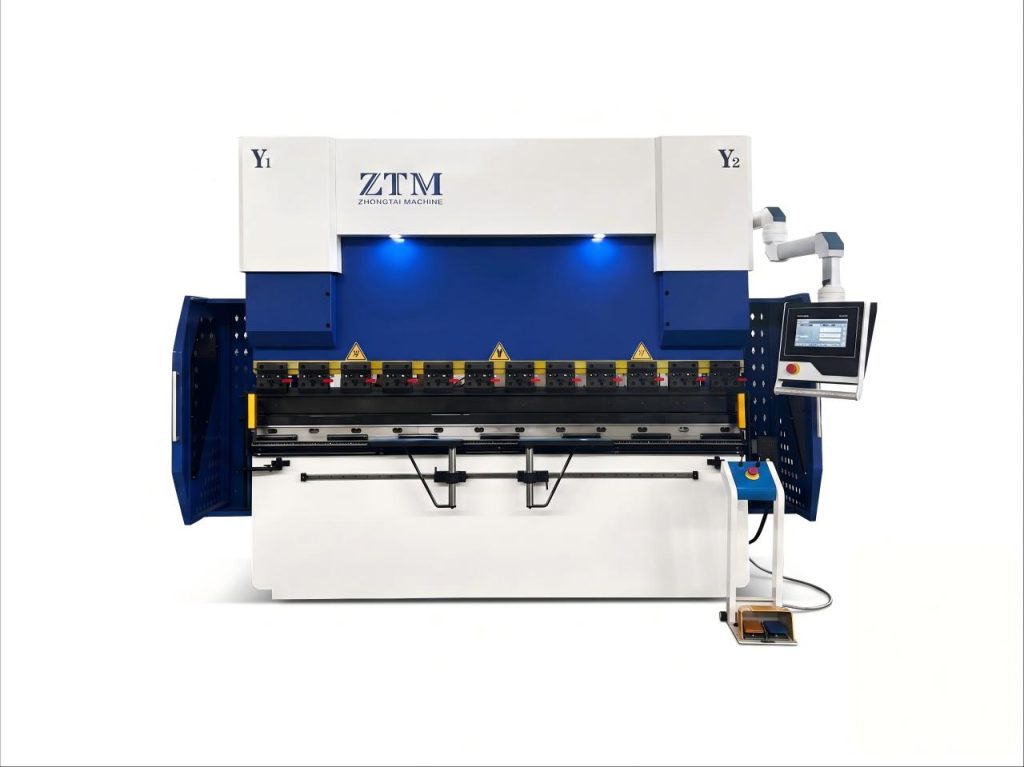

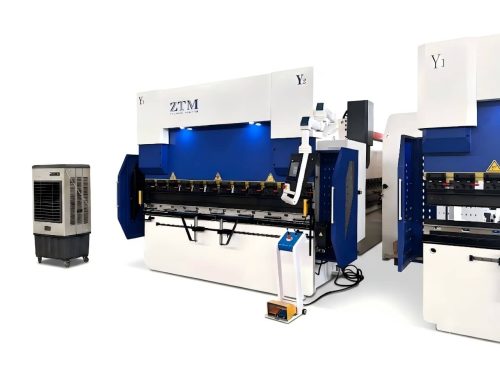

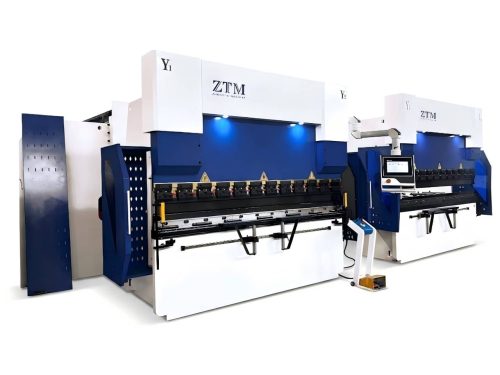

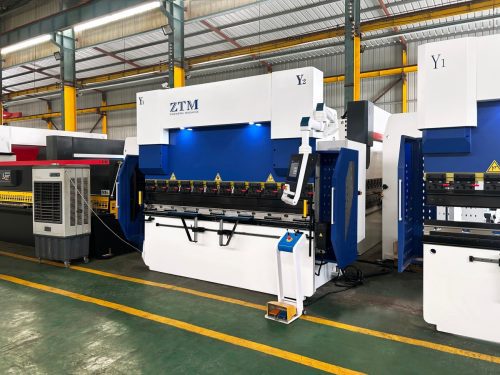

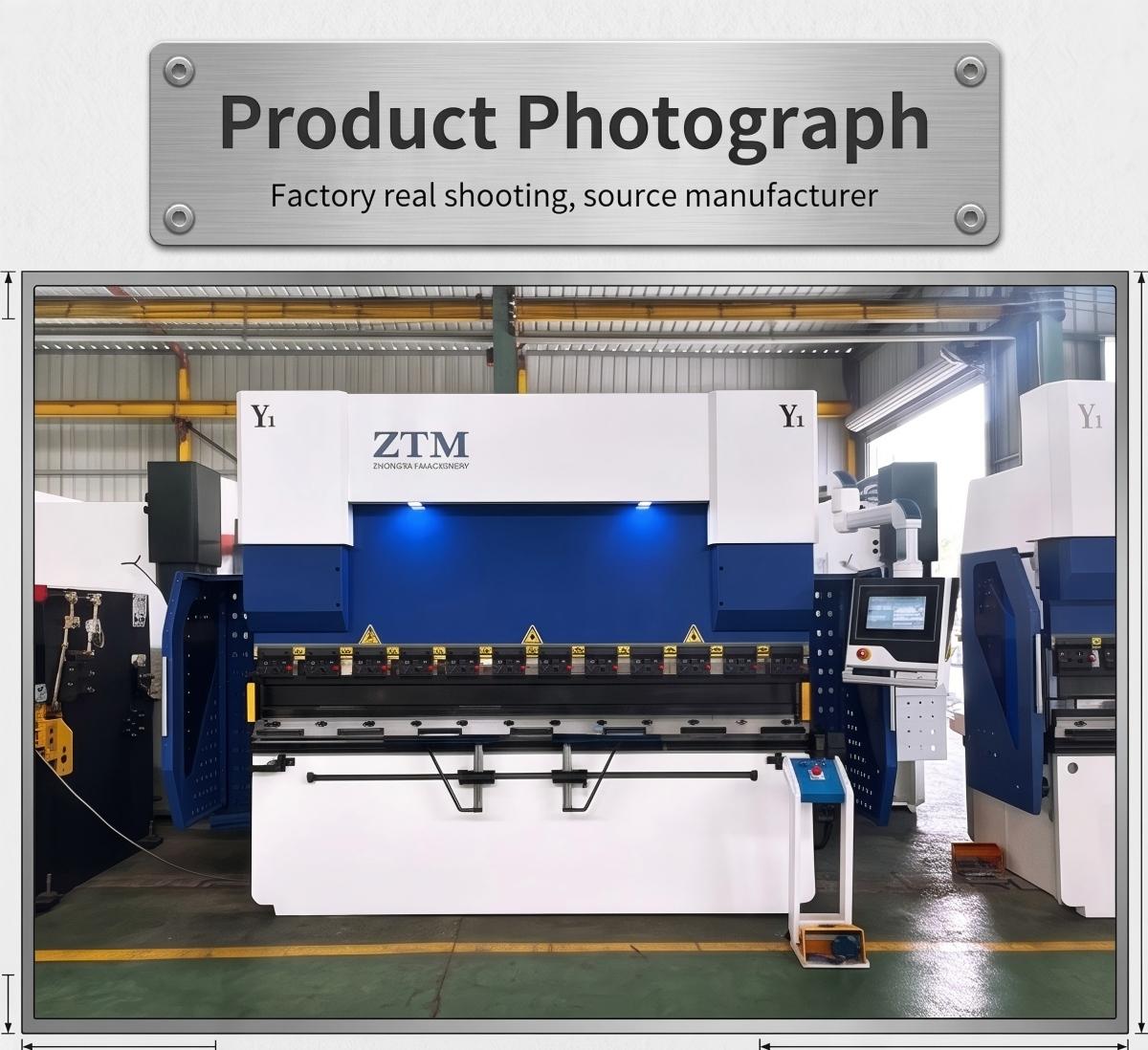

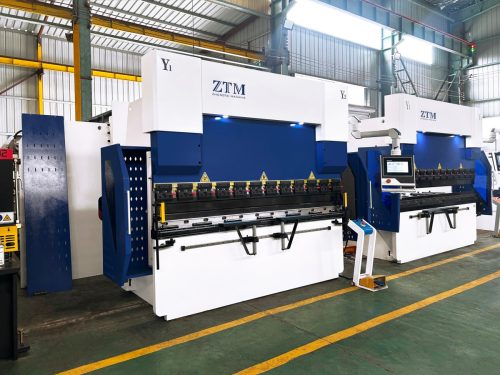

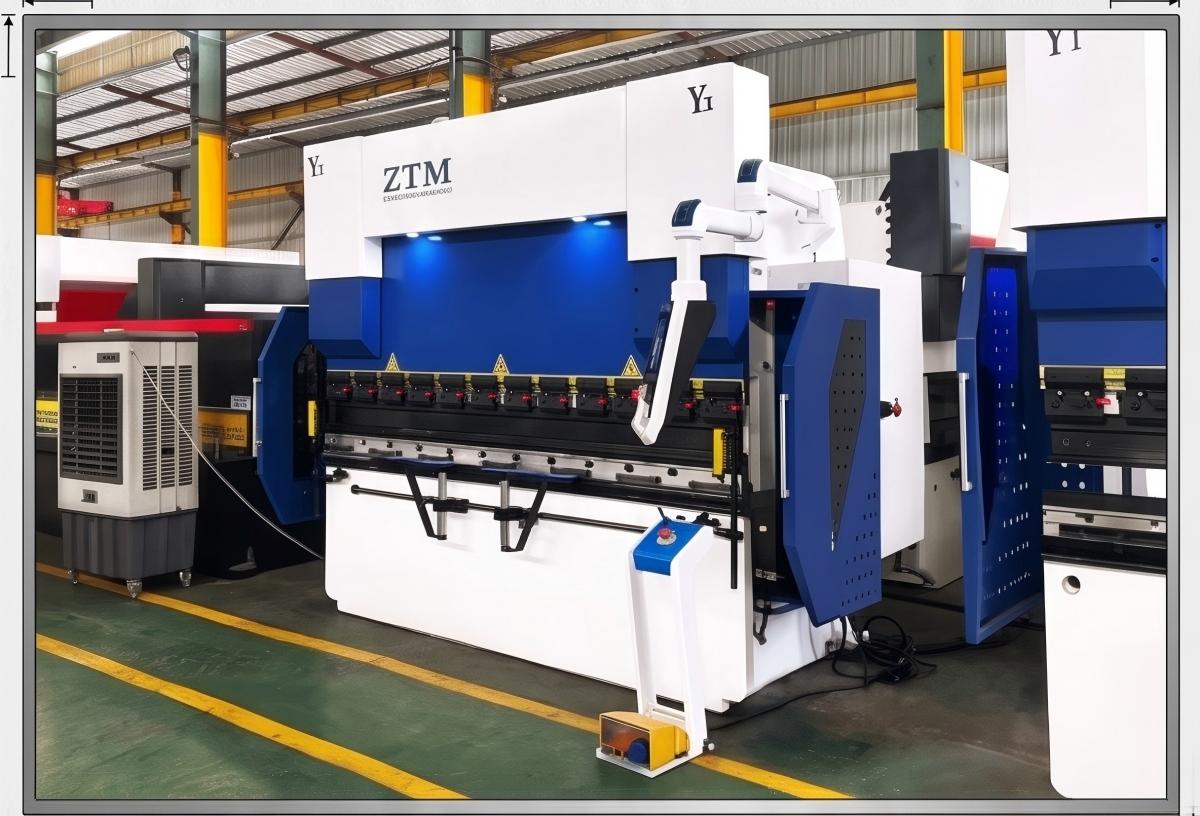

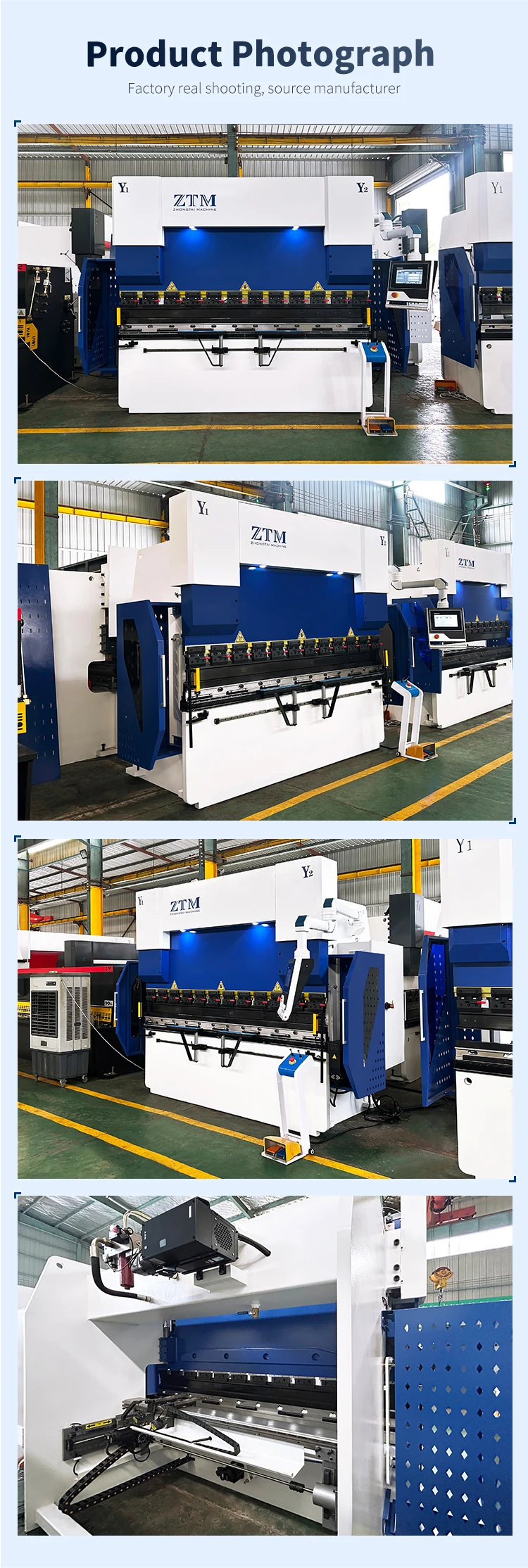

70T/2500mm Hydraulic Press Brake
The ZTM 70T-2500 CNC electro-hydraulic servo press brake is equipped with the Delem DA53T touch screen system. Engineered for high-precision sheet metal bending, energy savings, and superior operational efficiency.
- Delem DA53T 2D Graphical CNC Control
- High Precision & Repeatable Bending Accuracy
- Electro-Hydraulic Servo Energy Saving System
- Robust Frame Structure & Long Durability
- Comprehensive Safety Protection & Low Maintenance
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Important Parameters
| Parameter | Value |
| Nominal Pressure | 700 KN (70 Ton) |
| Bending Length | 2500 mm |

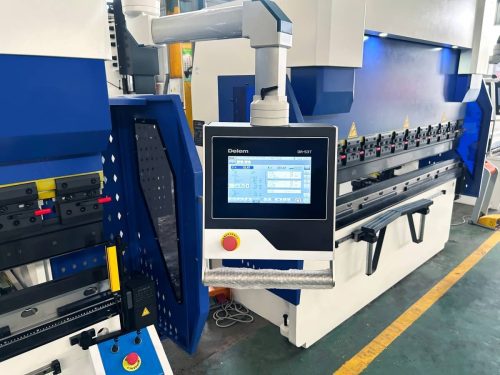

| Control System | Delem DA53T CNC Controller |
| Machine Type | Electro-Hydraulic Servo Press Brake |

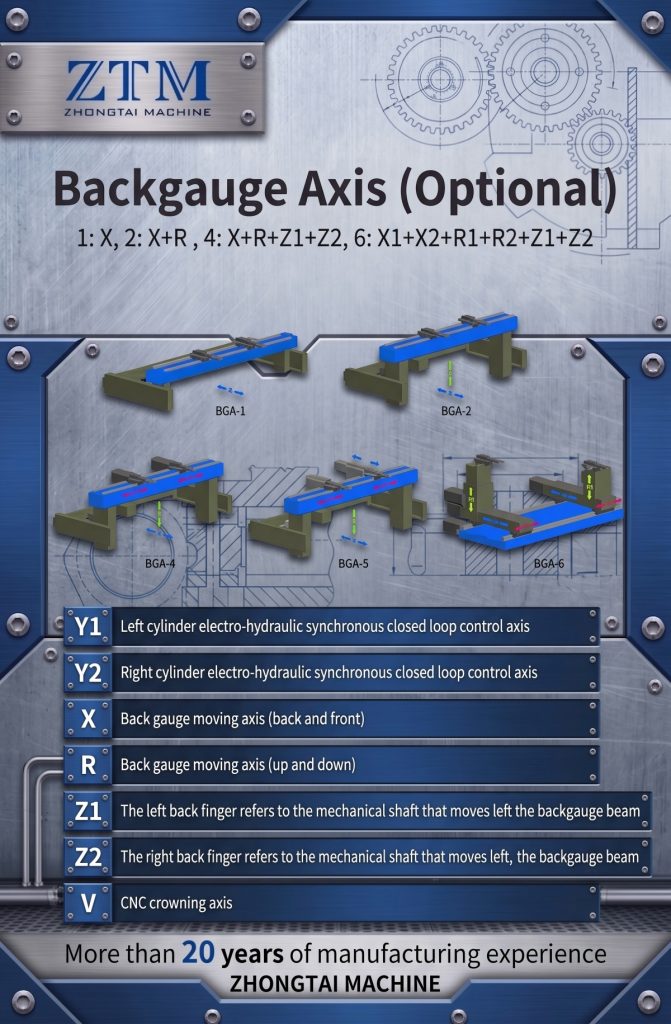

| Number of Axes | 4+1 Axis (Y1, Y2, X, R + V Mechanical Crowning) |
| Ram Stroke | 200 mm |
| Max Open Height | 420 mm |
| Throat Depth | 320 mm |
| Distance Between Uprights | 2050 mm |
| Repeat Positioning Accuracy (mm) | ±0.01 |
| Main Motor Power | 7.5 KW |
| Voltage | 380V / 3 Phase / 50Hz (Customizable) |

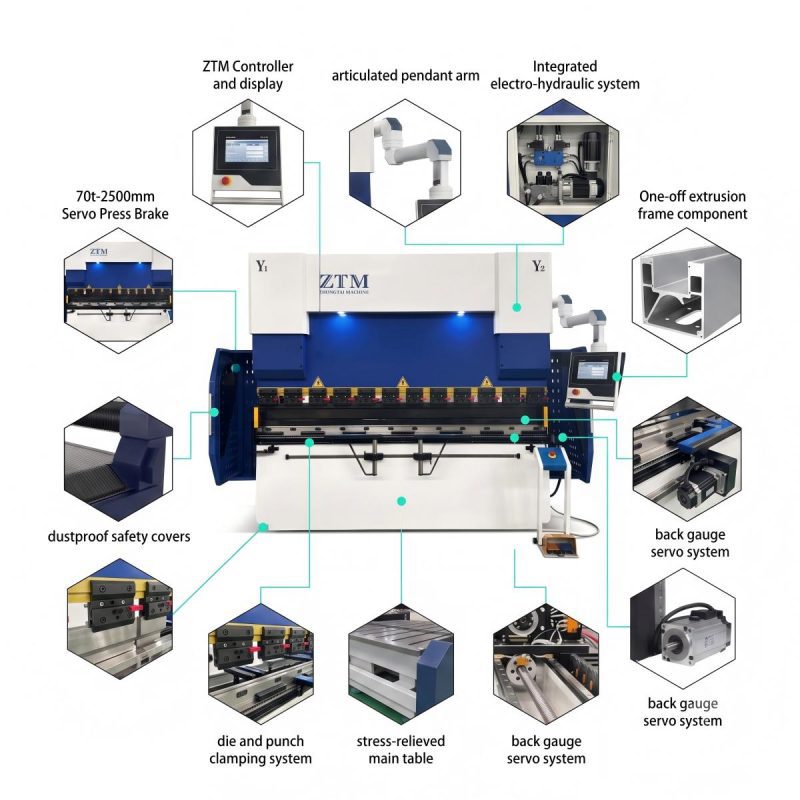

| Core Components | PLC, Servo Motor, Hydraulic System, Proportional Valve, Linear Scale, Ball Screw |
| Machinery Test Report | Available |
| Video Factory Inspection | Available |
| Warranty Period | 1 Year |
| Weight (KG) | 5800 |
| Dimensions (L×W×H) | 3000×1600×2400 mm |
| Core Selling Point | High Precision & Energy Saving |
| Application | Sheet Metal Bending & Fabrication |
| Keyword | 70T 2500mm CNC Servo Press Brake DA53T |
Specifications
FAQ
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
