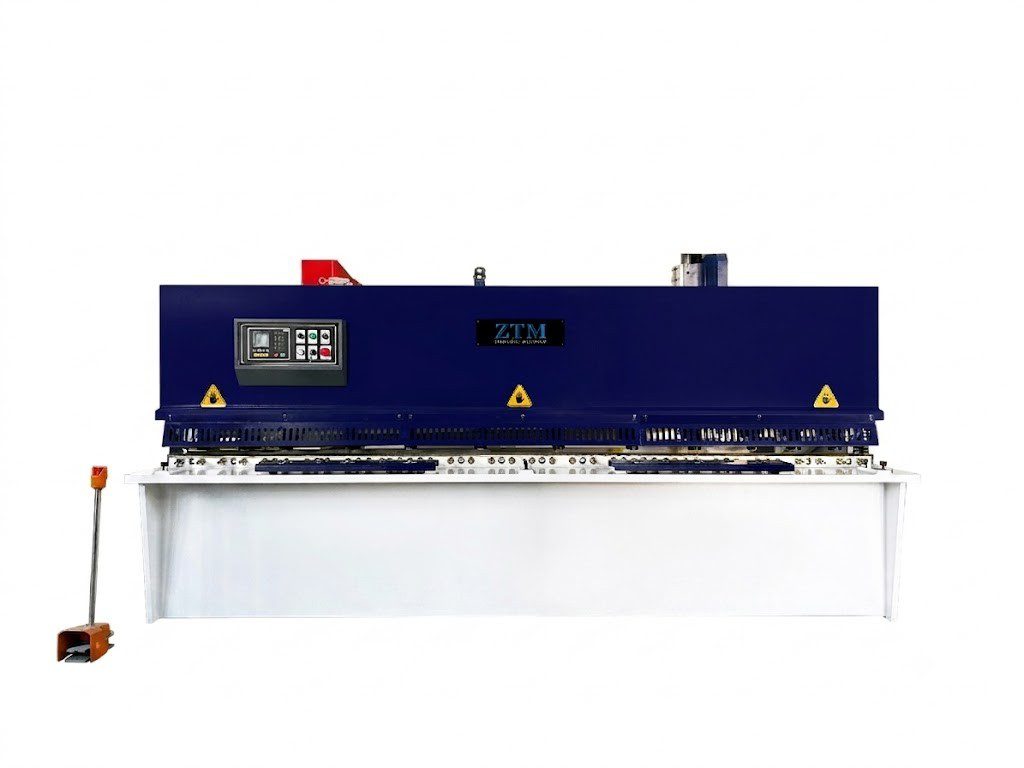

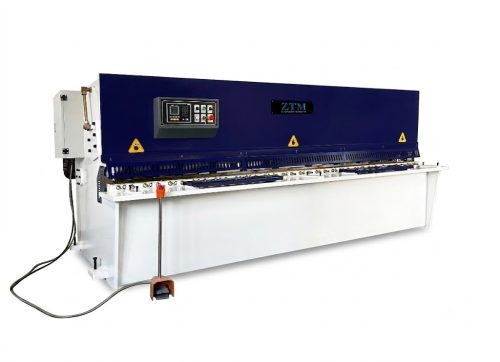

4×3200 Hydraulic Swing Beam Shearing Machine
- High-Precision Cutting: Handles up to 4mm sheet metal thickness with a 3200mm cutting length for accurate industrial operation.

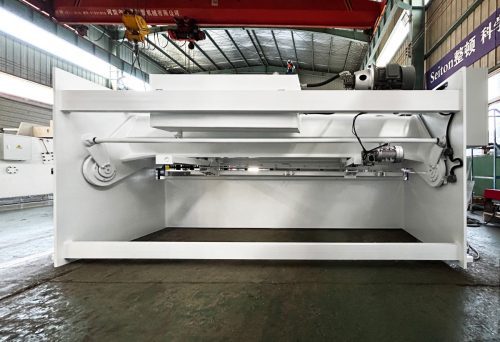

- Heavy-Duty Hydraulic System: Robust swing beam structure delivers stable shearing force and extended service life.

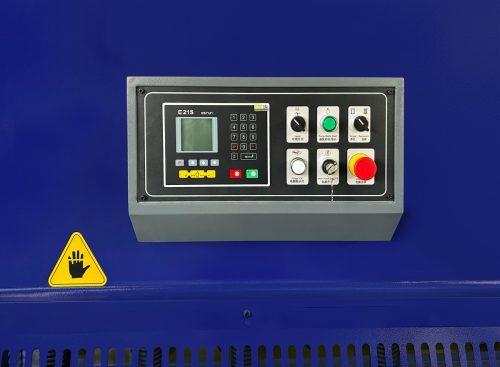

- NC Intelligent Control: Features an integrated digital controller for quick parameter setup and accurate backgauge positioning.
- Safe & Quiet Operation: Equipped with safety protection guards, emergency stops, and low-noise hydraulic pumps.
- Cost-Effective & Durable: High-rigidity steel frame structure paired with wear-resistant blades to minimize operating and maintenance costs.
Richiedi un preventivo
Inserisci la quantità desiderata e aggiungi il prodotto al tuo elenco di preventivi per richiedere un'offerta.
Parametri importanti
| Parametro | Valore |
| Tensione | 380 V (3-Phase, 50Hz / Customizable) |
| Numero di assi | 1 (X-axis Backgauge) / 2-Axis |
| Precisione di posizionamento ripetibile (mm) | ±0.1 |
| Componenti principali | PLC, Hydraulic System, Motor, Gear Pump, Electrical Cabinet, Shearing Blade |
| Rapporto di collaudo dei macchinari | Disponibile |
| Periodo di garanzia | 1 anno |
| Ispezione video dello stabilimento | Disponibile |
| Dimensioni (L×P×A) | 380*165*165 cm |
| Punto di forza principale | High Precision & Easy Operation |
| Precisione di taglio (mm) | 0.1 |
| Peso (kg) | 4500 |
| Potenza nominale | 5.5KW |
| Applicazione | Sheet Metal Fabrication, Carbon Steel & Stainless Steel Cutting |
| Tipo | Hydraulic Swing Beam Shearing Machine |
| Parola chiave | 4×3200 Shearing Machine, Hydraulic Swing Beam Shear, Metal Sheet Cutting Machine |
Product Images
Domande frequenti
Who is Ma'anshan Zhongtai Machine Tool Co., Ltd. (ZTM)?
Ma’anshan Zhongtai Machine Tool Co., Ltd. (brand ZTM) is a leading industrial machinery manufacturer based in China. We specialize in the R&D, design, and manufacturing of high-precision CNC press brakes, hydraulic shearing machines, and fiber laser cutting machines. With years of industry expertise, ZTM delivers durable and energy-efficient metal fabrication solutions to clients worldwide.
Do you support OEM/ODM customized manufacturing?
Yes! We offer comprehensive OEM and ODM customization services. Whether you require specific table dimensions, customized bending/shearing capacities, special voltage configurations, unique paint colors, or custom logo branding, our engineering team can tailor the machines to meet your exact production requirements.
What are the main product lines offered by ZTM?
Our core product lines include:
CNC Electro-Hydraulic Servo Press Brakes: High-precision sheet metal bending machines equipped with advanced controllers (such as Delem, ESA, or KT15).
Hydraulic Shearing Machines: Including Swing Beam Shears and Guillotine Shears for fast, accurate sheet metal cutting.
Fiber Laser Cutting Machines: High-efficiency laser cutting systems for various metal plates and tubes with minimal material waste.
How do I choose the right press brake or shearing machine capacity for my business?
How does ZTM ensure machine quality before shipment?
Quality is our top priority. Every ZTM machine undergoes strict raw material inspection, precise assembly checks, and rigorous performance testing (including continuous running test and precision accuracy test) before leaving the factory. We provide Machinery Test Reports and offer Video Factory Inspections prior to delivery.
What is the warranty policy for ZTM machines?
We offer a standard 1-Year Warranty covering all major components (such as PLC, hydraulic systems, motors, and bearings). During the warranty period, any non-human error broken parts will be replaced free of charge. Extended warranty plans and lifetime technical consultation are also available.
What is your standard lead time and shipping method?
Production Lead Time: Typically 25 to 35 working days depending on the machine model and custom specifications.
Shipping: We support FCL (Full Container Load) and LCL maritime shipping, fully packed in seaworthy protective film and steel frames to ensure safe global transportation.
How do you provide technical support and installation for overseas clients?
We provide full-spectrum global support:
User Manuals & Videos: Detailed operation manuals, electrical schematics, and step-by-step installation videos.
Online Technical Assistance: 24/7 remote guidance via Video Call, WhatsApp, and Email from our senior engineers.
On-Site Services: Overseas engineering dispatch for installation, commissioning, and staff training can be arranged upon request.
